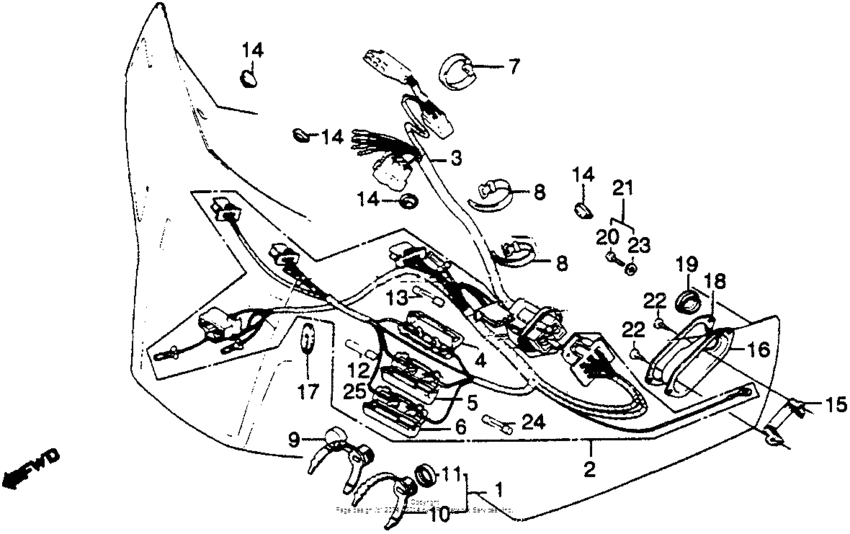

Gl1100i fairing wire harness Diagram Honda GL1100 Gold Wing Interstate
- Year
- 1980
- Model code
- GL1100I A
- Sales region
- USA
- Frame
- SC024004778 - SC024021991
- Engine Capacity
- 1100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
32105-463-770
Sub harness e
|
32105-463-770 |
— | ||
|
3
|
3
32106-463-770
Sub harness f
|
32106-463-770 |
— | ||
|
4
|
4
32125-463-770
Case, fuse (5a)
|
32125-463-770 |
— | ||
|
5
|
5
32126-463-770 Case, fuse (10a) |
32126-463-770 |
from US $5.59 |
||
|
7
|
7
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
8
|
8
32161-438-000 Band, wire |
32161-438-000 |
from US $3.92 |
||
|
9
|
9
32161-463-770
Band, fuse holder
Use from Frame SN 4024144 |
32161-463-770 |
— | ||
|
14
|
14
60604-581-000
Grommet,wire
|
60604-581-000 |
— | ||
|
15
|
15
64232-463-770
Holder b,coupler
|
64232-463-770 |
— | ||
|
16
|
16
64295-463-890
Holder b,coupler
|
64295-463-890 |
— | ||
|
17
|
17
64297-463-770
Gromet,light cord
|
64297-463-770 |
— | ||
|
18
|
18
64299-463-770
Pkg,holder
|
64299-463-770 |
— | ||
|
19
|
19
66893-567-000
Cap,cigalighter
|
66893-567-000 |
— | ||
|
21
|
21
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
22
|
22
93903-34180 ScrewTAPPING, 4X8 |
93903-34180 |
from US $0.37 |
||
|
24
|
24
98200-20500 Fuse b (5a) |
98200-20500 |
from US $0.59 |
||
|
25
|
25
98200-21000 Fuse b10A |
98200-21000 |
from US $0.62 |
