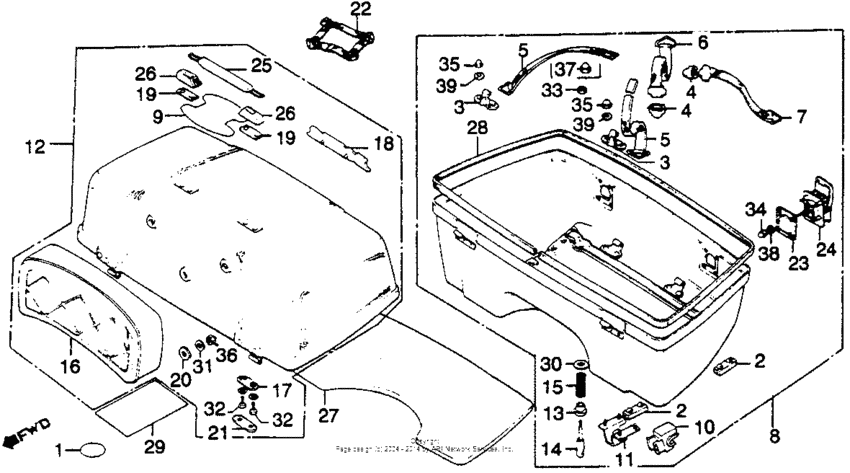

Gl1100i rear trunk Diagram Honda GL1100 Gold Wing Interstate
- Year
- 1980
- Model code
- GL1100I A
- Sales region
- USA
- Frame
- SC024004778 - SC024021991
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75826-605-300 SealDOOR HOLE, 30MM (CIRCLE) (BLACK) |
75826-605-300 |
from US $2.10 |
||
|
1
|
1
91619-SE0-000 SealDOOR HOLE, 30MM(BLACK) |
91619-SE0-000 |
from US $1.33 |
||
|
2
|
2
77204-312-000 Rubber, seat setting |
77204-312-000 |
from US $4.74 |
||
|
3
|
3
81101-463-770
Brkt,a,trunk belt
|
81101-463-770 |
— | ||
|
4
|
4
81105-463-770 Hook a,trunk belt |
81105-463-770 |
US $5.87 |
||
|
5
|
5
81107-463-770
Belt a,trunk
|
81107-463-770 |
— | ||
|
6
|
6
81108-463-770
Belt b,r.trunk
|
81108-463-770 |
— | ||
|
7
|
7
81109-463-770
Belt b,l.trunk
|
81109-463-770 |
— | ||
|
8
|
8
81110-463-890ZA
Trunk*r-104c-u*
|
81110-463-890ZA |
— | ||
|
8
|
8
81110-463-770ZC
Trunk,lower*nh-1*
|
81110-463-770ZC |
— | ||
|
9
|
9
81111-463-770
Protr,trunk cover
|
81111-463-770 |
— | ||
|
11
|
11
81114-463-305 Set.trunk.holder |
81114-463-305 |
US $18.05 |
||
|
12
|
12
81120-463-770ZA
Trunk,*r-104c-u*
|
81120-463-770ZA |
— | ||
|
12
|
12
81120-463-770ZC
Trunk up *nh-1*
|
81120-463-770ZC |
— | ||
|
13
|
13
81121-463-771
Seat,lift spring
|
81121-463-771 |
— | ||
|
14
|
14
81122-463-771
Bar,trunk setting
|
81122-463-771 |
— | ||
|
15
|
15
81123-463-770
Spring,lift
|
81123-463-770 |
— | ||
|
16
|
16
81125-463-770
Back,seat
|
81125-463-770 |
— | ||
|
17
|
17
81126-463-770
Plate,grip sett.
|
81126-463-770 |
— | ||
|
18
|
18
81128-463-770
Emb,trunk upper
|
81128-463-770 |
— | ||
|
19
|
19
81129-463-770
Rub,trunk grip
|
81129-463-770 |
— | ||
|
23
|
23
81217-463-770 Rubber,lock |
81217-463-770 |
US $5.41 |
||
|
24
|
24
81218-463-770
Lock,side bag
|
81218-463-770 |
— | ||
|
25
|
25
81225-463-770 Grip,trunk |
81225-463-770 |
US $17.66 |
||
|
26
|
26
81241-463-770
Holder,trunk grip
|
81241-463-770 |
— | ||
|
27
|
27
81242-463-770
Mat,trunk floor
|
81242-463-770 |
— | ||
|
28
|
28
81420-463-770
Rubber,trunk
|
81420-463-770 |
— | ||
|
29
|
29
87520-463-770
Label,bag caution
|
87520-463-770 |
— | ||
|
30
|
30
90404-463-303
Washer,spec.22mm
|
90404-463-303 |
— | ||
|
31
|
31
90485-286-000 Washer, 6mm |
90485-286-000 |
from US $2.29 |
||
|
32
|
32
92101-05010-0A BoltHEX., 5X10 |
92101-05010-0A |
from US $0.37 |
||
|
34
|
34
94021-040000S Nut, cap (4mm) |
94021-040000S |
from US $0.44 |
||
|
35
|
35
94021-050000S Nut, cap, 5mm |
94021-050000S |
from US $0.44 |
||
|
36
|
36
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
37
|
37
94021-080-000-S NutCAP, 8MM |
94021-080-000-S |
from US $0.62 |
||
|
38
|
38
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
39
|
39
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
