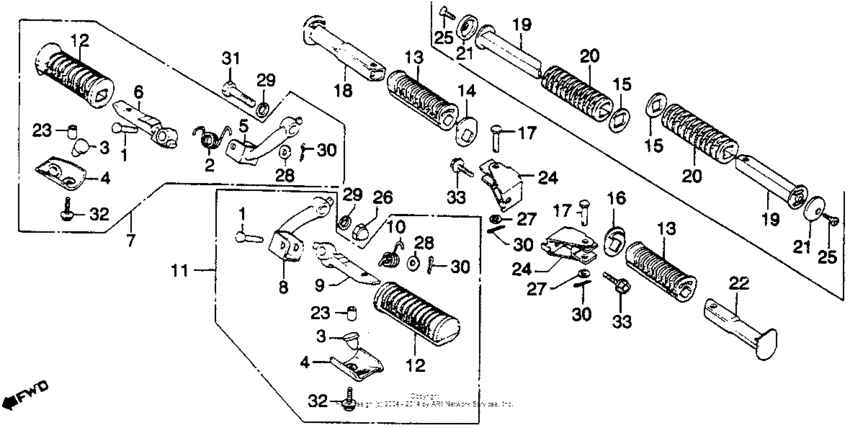

Step Diagram Honda GL1100 Gold Wing Interstate
- Year
- 1980
- Model code
- GL1100I A
- Sales region
- USA
- Frame
- SC024004778 - SC024021991
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
2
|
2
50617-300-670
Spring, r
|
50617-300-670 |
— | ||
|
3
|
3
50618-431-670
Slider,step
|
50618-431-670 |
— | ||
|
4
|
4
50619-MB9-000
Stopper,step rub.
|
50619-MB9-000 |
— | ||
|
5
|
5
50630-463-000
Bracket,r.step
|
50630-463-000 |
— | ||
|
6
|
6
50632-405-000 Arm,r.step |
50632-405-000 |
US $50.30 |
||
|
7
|
7
50635-463-000
Step assy.,r.
|
50635-463-000 |
— | ||
|
8
|
8
50640-463-000
Bracket.l.step
|
50640-463-000 |
— | ||
|
9
|
9
50642-405-000
Arm,l.step
|
50642-405-000 |
— | ||
|
10
|
10
50644-300-670
Spring, l
|
50644-300-670 |
— | ||
|
11
|
11
50645-463-000
Step assy.,l.
|
50645-463-000 |
— | ||
|
12
|
12
50661-405-000
Rubber,step
|
50661-405-000 |
— | ||
|
15
|
15
50712-371-660
Washer,step
|
50712-371-660 |
— | ||
|
17
|
17
50714-371-660
Pin b, pillion step
|
50714-371-660 |
— | ||
|
19
|
19
50715-371-660
Bar,step
|
50715-371-660 |
— | ||
|
20
|
20
50716-371-660 Rub, pillion footpeg |
50716-371-660 |
from US $17.32 |
||
|
21
|
21
50717-371-660
Cover,step
|
50717-371-660 |
— | ||
|
23
|
23
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
24
|
24
90167-371-660
Brkt, pillion step
|
90167-371-660 |
— | ||
|
25
|
25
93700-040-120-B Screw cross 4x12 |
93700-040-120-B |
from US $0.52 |
||
|
26
|
26
94021-122000S Nut, cap (12mm) |
94021-122000S |
US $1.04 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
28
|
28
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
29
|
29
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
30
|
30
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
31
|
31
95300-1204000
Bolt, hex. (12x40)
|
95300-1204000 |
— | ||
|
32
|
32
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
||
|
33
|
33
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
