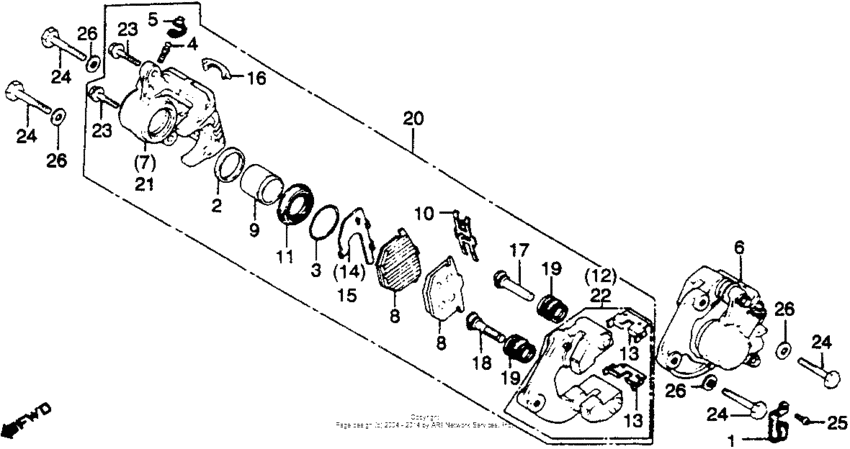

Front brake caliper 80-81 Diagram Honda GL1100 Gold Wing Interstate
- Year
- 1981
- Model code
- GL1100I A
- Sales region
- USA
- Frame
- 1HFSC021*BA100001 - 1HFSC021*BA127473
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06455-371-405 Pad set, brake |
06455-371-405 |
from US $70.28 |
||
|
1
|
1
32906-049-000
Clip
|
32906-049-000 |
— | ||
|
2
|
2
43209-431-671 Seal, piston |
43209-431-671 |
from US $12.64 |
||
|
3
|
3
43218-371-006 Clip,dust cover |
43218-371-006 |
from US $10.80 |
||
|
4
|
4
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
5
|
5
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
6
|
6
45100-463-405
Cal assy fr
|
45100-463-405 |
— | ||
|
6
|
6
45100-463-744 Caliper, l. fr. |
45100-463-744 |
US $665.92 |
||
|
7
|
7
45101-415-026
Caliper,l.
|
45101-415-026 |
— | ||
|
8
|
8
45105-410-005 Pad comp |
45105-410-005 |
US $55.35 |
||
|
9
|
9
45107-415-006 Piston (nisshin) |
45107-415-006 |
US $49.57 |
||
|
10
|
10
45108-415-006
Spring,pad
|
45108-415-006 |
— | ||
|
11
|
11
45109-371-006 Boot,piston |
45109-371-006 |
from US $17.41 |
||
|
12
|
12
45110-422-016
Bracket,l.fr.
|
45110-422-016 |
— | ||
|
13
|
13
45112-410-006 Retainer, fr.brkt |
45112-410-006 |
from US $6.96 |
||
|
14
|
14
45114-371-006 Shim a,pad |
45114-371-006 |
US $11.40 |
||
|
15
|
15
45116-371-006 Shim b,pad |
45116-371-006 |
US $11.40 |
||
|
16
|
16
45119-371-000 Cap,indicater |
45119-371-000 |
US $9.70 |
||
|
17
|
17
45131-410-006
Pin a
|
45131-410-006 |
— | ||
|
18
|
18
45132-410-006
Pin b comp.
|
45132-410-006 |
— | ||
|
19
|
19
45133-371-006 Cover, dust |
45133-371-006 |
from US $9.61 |
||
|
20
|
20
45200-463-743 Caliper assy,r.fr |
45200-463-743 |
US $665.92 |
||
|
20
|
20
45200-463-744 Caliper, r. fr. |
45200-463-744 |
US $639.08 |
||
|
21
|
21
45201-422-026
Caliper,r.
|
45201-422-026 |
— | ||
|
22
|
22
45210-422-016
Bracket,r.fr.
|
45210-422-016 |
— | ||
|
23
|
23
90116-410-006 Bolt (8x25) |
90116-410-006 |
from US $5.03 |
||
|
24
|
24
90123-371-000
Bolt,front calipe
|
90123-371-000 |
— | ||
|
25
|
25
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
25
|
25
93500-06008 Screw, pan, 6x8 |
93500-06008 |
from US $0.44 |
||
|
25
|
25
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
26
|
26
94101-10200 Washer, plain (10mm) |
94101-10200 |
from US $0.52 |
