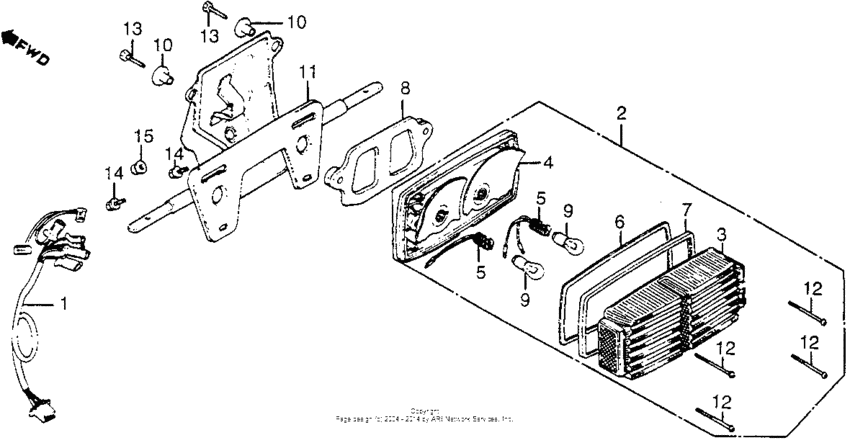

Taillight 84 Diagram Honda GL1200 Gold Wing
- Year
- 1984
- Model code
- GL1200 AC
- Sales region
- USA
- Frame
- 1HFSC143*EA010373 - 1HFSC143*EA022588
- Engine Capacity
- 1200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-MG9-670
Sub-wire harness
|
32101-MG9-670 |
— | ||
|
2
|
2
33701-463-671
Taillight unit
|
33701-463-671 |
— | ||
|
3
|
3
33702-422-671
Lens, taillight
|
33702-422-671 |
— | ||
|
4
|
4
33703-463-670
Base b, taillight
|
33703-463-670 |
— | ||
|
5
|
5
33708-147-003 Cable, taillight |
33708-147-003 |
US $7.62 |
||
|
6
|
6
33709-422-003
Gasket
|
33709-422-003 |
— | ||
|
7
|
7
33710-422-003
Rim, taillight
|
33710-422-003 |
— | ||
|
8
|
8
33715-463-000
Rubber
|
33715-463-000 |
— | ||
|
9
|
9
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
10
|
10
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
10
|
10
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
10
|
10
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
11
|
11
84700-463-670
Brkt, license plate
|
84700-463-670 |
— | ||
|
12
|
12
90147-147-671 Screw, tap (4x60) |
90147-147-671 |
from US $3.18 |
||
|
13
|
13
92101-06025-0B Bolt, hex. (6x25) |
92101-06025-0B |
from US $0.67 |
||
|
14
|
14
93403-0601200 Bolt-washer, 6x12 |
93403-0601200 |
from US $0.59 |
||
|
15
|
15
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
