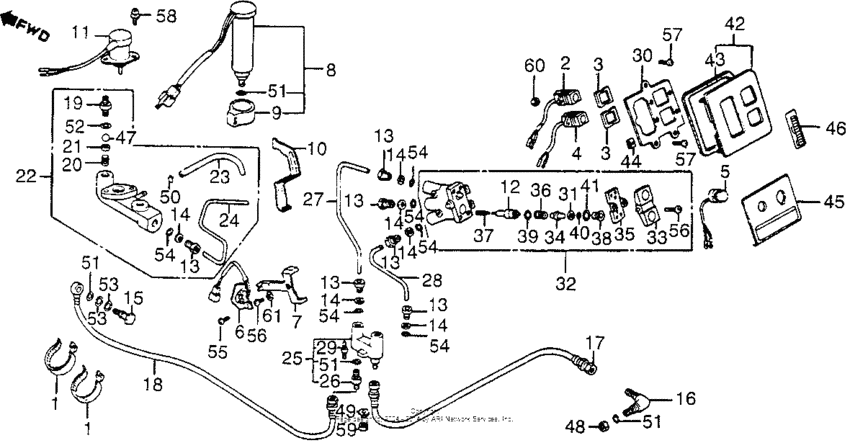

Gl1200a air valve + hose 84-85 Diagram Honda GL1200 Gold Wing Aspencade
- Year
- 1984
- Model code
- GL1200A A
- Sales region
- USA
- Frame
- 1HFSC142*EA002273 - 1HFSC142*EA034452
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32161-438-000 Band, wire |
32161-438-000 |
from US $3.92 |
||
|
2
|
2
35250-MB9-950
Switch assy., pump
|
35250-MB9-950 |
— | ||
|
3
|
3
35252-MB9-870
Seal, pump switch
|
35252-MB9-870 |
— | ||
|
4
|
4
35260-MG9-870
Switch assy., pump
|
35260-MG9-870 |
— | ||
|
5
|
5
35270-MG9-871
Switch assy., pump
|
35270-MG9-871 |
— | ||
|
6
|
6
35300-MG9-870
Switch, air pressure
|
35300-MG9-870 |
— | ||
|
7
|
7
35310-MB9-950
Lever
|
35310-MB9-950 |
— | ||
|
8
|
8
35660-MB9-951
Sensor, air pressure
|
35660-MB9-951 |
— | ||
|
9
|
9
35665-MB9-950 Setting, air sensor |
35665-MB9-950 |
US $10.86 |
||
|
10
|
10
36145-MG9-870
Stay
|
36145-MG9-870 |
— | ||
|
11
|
11
36163-MG9-870 Valve, solenoid |
36163-MG9-870 |
US $91.82 |
||
|
12
|
12
51456-MB9-871
Valve, air
|
51456-MB9-871 |
— | ||
|
13
|
13
51886-MG9-871
Tube, joint
|
51886-MG9-871 |
— | ||
|
14
|
14
51888-SA5-800
Collar, joint
|
51888-SA5-800 |
— | ||
|
15
|
15
52628-MG9-871 Bolt, air hose |
52628-MG9-871 |
from US $12.03 |
||
|
16
|
16
52629-MB9-950
Joint, elbow
|
52629-MB9-950 |
— | ||
|
17
|
17
52630-MG9-871
Hose, air
|
52630-MG9-871 |
— | ||
|
18
|
18
52650-MG9-951
Hose, air
|
52650-MG9-951 |
— | ||
|
19
|
19
52721-MB9-951
Connector
|
52721-MB9-951 |
— | ||
|
20
|
20
52723-MB9-870
Spring, valve
|
52723-MB9-870 |
— | ||
|
21
|
21
52726-MB9-871
Washer, cap
|
52726-MB9-871 |
— | ||
|
22
|
22
52730-MG9-871
Joint, four-way
|
52730-MG9-871 |
— | ||
|
23
|
23
52733-MG9-871
Hose, drain
|
52733-MG9-871 |
— | ||
|
24
|
24
52734-MG9-870 Tube |
52734-MG9-870 |
US $24.16 |
||
|
25
|
25
52735-MG9-870
Joint sub-assy.
|
52735-MG9-870 |
— | ||
|
26
|
26
52737-MG9-871
Connector
|
52737-MG9-871 |
— | ||
|
27
|
27
52738-MG9-870
Tube
|
52738-MG9-870 |
— | ||
|
28
|
28
52739-MG9-870
Tube
|
52739-MG9-870 |
— | ||
|
29
|
29
52744-MG9-871
Bolt, stud (6x22)
|
52744-MG9-871 |
— | ||
|
30
|
30
52745-MG9-870 Plate |
52745-MG9-870 |
US $10.83 |
||
|
31
|
31
52757-MB9-871
Rubber, seal
|
52757-MB9-871 |
— | ||
|
32
|
32
52760-MG9-870 Valve assy., main |
52760-MG9-870 |
US $366.20 |
||
|
33
|
33
52762-MG9-871
Button, main valve
|
52762-MG9-871 |
— | ||
|
34
|
34
52763-MB9-871
Shaft, main valve
|
52763-MB9-871 |
— | ||
|
35
|
35
52764-MB9-951
Cap, main valve
|
52764-MB9-951 |
— | ||
|
36
|
36
52765-MB9-871
Spring, main valve
|
52765-MB9-871 |
— | ||
|
37
|
37
52766-MB9-871
Sub-spring
|
52766-MB9-871 |
— | ||
|
38
|
38
52769-MB9-871
Guide, shaft
|
52769-MB9-871 |
— | ||
|
39
|
39
52771-MB9-871 O-ring a, 7.5x1.5 |
52771-MB9-871 |
US $2.09 |
||
|
40
|
40
52772-MB9-871 O-ring b (4.5x1.5) |
52772-MB9-871 |
US $2.31 |
||
|
41
|
41
52773-MB9-871
O-ring c (8.5x1.5)
|
52773-MB9-871 |
— | ||
|
42
|
42
52810-MG9-870ZC
Pnl *nh105* (type3)
|
52810-MG9-870ZC |
— | ||
|
43
|
43
52811-MG9-770
Rubber, panel
|
52811-MG9-770 |
— | ||
|
44
|
44
64521-MC7-000 Nut, clip (4mm) |
64521-MC7-000 |
from US $3.84 |
||
| replacement | |||||
|
44
|
44
64527-KY2-700 Nut,clip,4mm |
64527-KY2-700 |
from US $3.11 |
||
|
44
|
44
64527-KY2-700 Nut,clip,4mm |
64527-KY2-700 |
from US $3.11 |
||
|
45
|
45
87519-MG9-870
Plate
|
87519-MG9-870 |
— | ||
|
46
|
46
87526-MG9-870 Label |
87526-MG9-870 |
US $15.98 |
||
|
47
|
47
90211-MB9-870 Ball, steel (10) |
90211-MB9-870 |
US $1.85 |
||
|
48
|
48
90301-MB9-950 Nut, lock, 12mm |
90301-MB9-950 |
from US $4.40 |
||
|
49
|
49
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
50
|
50
95002-45000 ClipTUBE(C8) |
95002-45000 |
from US $0.37 |
||
|
51
|
51
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
51
|
51
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
52
|
52
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
53
|
53
91351-671-004 O-ring7MM (NOK) |
91351-671-004 |
from US $2.18 |
||
|
54
|
54
91354-SA6-800 O-ring (p3) |
91354-SA6-800 |
from US $1.89 |
||
|
55
|
55
93500-030060A Screw, pan, 3x6 |
93500-030060A |
from US $0.37 |
||
|
56
|
56
93500-030-060-H ScrewPAN, 3X6 |
93500-030-060-H |
from US $0.38 |
||
|
57
|
57
93500-040100G Screw, pan, 4x10 |
93500-040100G |
from US $0.37 |
||
|
58
|
58
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
||
|
59
|
59
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
60
|
60
94002-040-000-S NutHEX., 4MM |
94002-040-000-S |
from US $0.37 |
||
|
61
|
61
9410103000 Washer, plain, 3mm |
9410103000 |
from US $0.37 |
||
