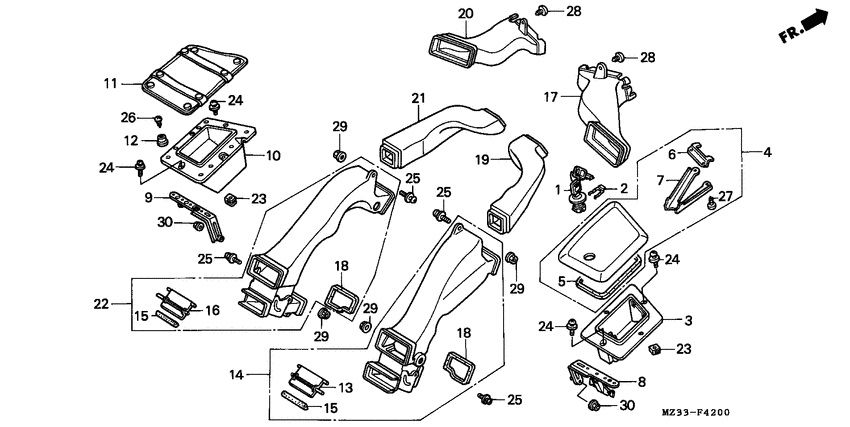

Air duct Diagram Honda GL1500 Gold Wing Aspencade
- Year
- 1993
- Model code
- GL1500AP
- Sales region
- Australia
- Frame
- SC222500001 - SC222599999
- Engine Capacity
- 1500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37220-439-007 Lock, filler lid |
37220-439-007 |
from US $38.76 |
||
|
2
|
2
37222-463-000 Spring |
37222-463-000 |
from US $5.33 |
||
|
3
|
3
64220-MN5-000 Pocket, r. |
64220-MN5-000 |
from US $55.62 |
||
|
4
|
4
64225-MZ3-000ZA Cvr *nh159l* (type1) |
64225-MZ3-000ZA |
US $67.58 |
||
|
5
|
5
64227-MN5-000 Rubber, r |
64227-MN5-000 |
from US $6.64 |
||
|
6
|
6
64228-MN5-000 Plate, r |
64228-MN5-000 |
from US $5.25 |
||
|
7
|
7
64229-MN5-000 Plate, support |
64229-MN5-000 |
US $8.01 |
||
|
8
|
8
64234-MZ3-000 Plate, r |
64234-MZ3-000 |
from US $20.01 |
||
|
9
|
9
64235-MN5-010 Plate, l |
64235-MN5-010 |
from US $20.01 |
||
|
10
|
10
64250-MN5-000 Pocket, l. |
64250-MN5-000 |
from US $55.62 |
||
|
11
|
11
64255-MN5-000ZA Cvr *nh159l* (type1) |
64255-MN5-000ZA |
US $54.54 |
||
|
12
|
12
64259-MN5-000 Hook, pocket |
64259-MN5-000 |
from US $1.85 |
||
|
13
|
13
64264-MN5-000 Lid, r. air duct |
64264-MN5-000 |
from US $6.64 |
||
|
14
|
14
64271-MN5-000 Duct, r. (lower) |
64271-MN5-000 |
US $118.56 |
||
|
15
|
15
64273-MN5-300 Seal, air duct lid |
64273-MN5-300 |
US $3.47 |
||
|
16
|
16
64274-MN5-000 Lid, l. air duct |
64274-MN5-000 |
US $6.48 |
||
|
17
|
17
64275-MN5-000 Duct, r. air (upper) |
64275-MN5-000 |
from US $53.11 |
||
|
18
|
18
64276-MN5-300 Seal, hot air |
64276-MN5-300 |
from US $6.64 |
||
|
19
|
19
64278-MN5-000 Duct, r. air (lower) |
64278-MN5-000 |
from US $42.88 |
||
|
20
|
20
64283-MN5-000 Duct, l. air (upper) |
64283-MN5-000 |
from US $51.49 |
||
|
21
|
21
64288-MN5-000 Duct, l. air (lower) |
64288-MN5-000 |
from US $42.88 |
||
|
22
|
22
64289-MN5-000 Duct, l. (lower) |
64289-MN5-000 |
from US $111.87 |
||
|
23
|
23
90305-MN5-000 Nut, plate (5mm) |
90305-MN5-000 |
from US $3.03 |
||
|
24
|
24
93891-0502007 Screw-washer, 5x20 |
93891-0502007 |
from US $0.44 |
||
|
25
|
25
93894-040-120-8 Screw-washer4X12 |
93894-040-120-8 |
from US $0.44 |
||
|
26
|
26
93901-24280 ScrewTAPPING, 4X10 |
93901-24280 |
from US $0.37 |
||
|
27
|
27
93903-25280 ScrewTAPPING, 5X12 |
93903-25280 |
from US $0.37 |
||
|
28
|
28
93903-34220 ScrewTAPPING, 4X10 |
93903-34220 |
from US $0.37 |
||
|
29
|
29
94050-04080 NutFLANGE, 4MM |
94050-04080 |
from US $0.44 |
||
|
30
|
30
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
