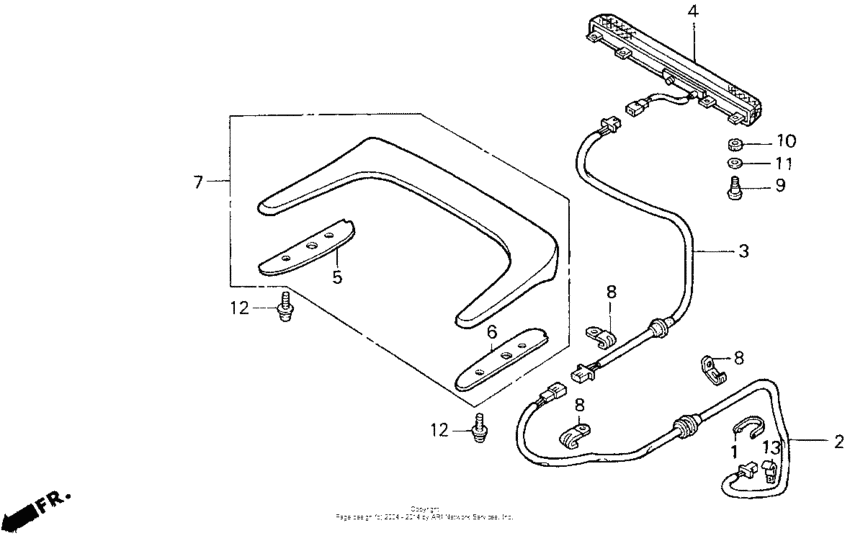

High mount light Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 2000
- Model code
- GL1500SE A
- Sales region
- USA
- Frame
- 1HFSC223*YA200001 -
- Engine Capacity
- 1500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17918-KJ2-000 Clip, throttle cable |
17918-KJ2-000 |
US $3.09 |
||
|
2
|
2
32110-MT8-770
Sub-harness
|
32110-MT8-770 |
— | ||
|
3
|
3
32116-MT8-770 Sub-harness |
32116-MT8-770 |
US $22.88 |
||
|
4
|
4
34200-MT8-771
Light assy
|
34200-MT8-771 |
— | ||
|
5
|
5
34311-MT8-770
Rubber, r
|
34311-MT8-770 |
— | ||
|
6
|
6
34312-MT8-770 Rubber, l |
34312-MT8-770 |
US $11.55 |
||
|
7
|
7
34320-MT8-770ZF Base sub *nh1z* |
34320-MT8-770ZF |
US $633.61 |
||
|
7
|
7
34320-MT8-770ZG Base sub *nh326p* |
34320-MT8-770ZG |
from US $563.67 |
||
|
7
|
7
34320-MT8-770ZQ Base sub *r176c* |
34320-MT8-770ZQ |
from US $563.67 |
||
|
7
|
7
34320-MT8-770ZH Base sub *pb255p* |
34320-MT8-770ZH |
US $563.67 |
||
|
8
|
8
90601-KJ9-000 Clip (4x50) |
90601-KJ9-000 |
from US $3.11 |
||
|
9
|
9
91422-MT8-770 Screw, special (5mm) |
91422-MT8-770 |
from US $1.15 |
||
|
10
|
10
91423-MT8-770 Rubber |
91423-MT8-770 |
US $1.70 |
||
|
11
|
11
91424-MT8-770 Washer, plain (7mm) |
91424-MT8-770 |
US $1.70 |
||
|
12
|
12
93891-060-120-7 Screw-washer6X12 |
93891-060-120-7 |
from US $0.52 |
||
|
13
|
13
9459145000 Clip, wire, 4x50 |
9459145000 |
from US $1.04 |
