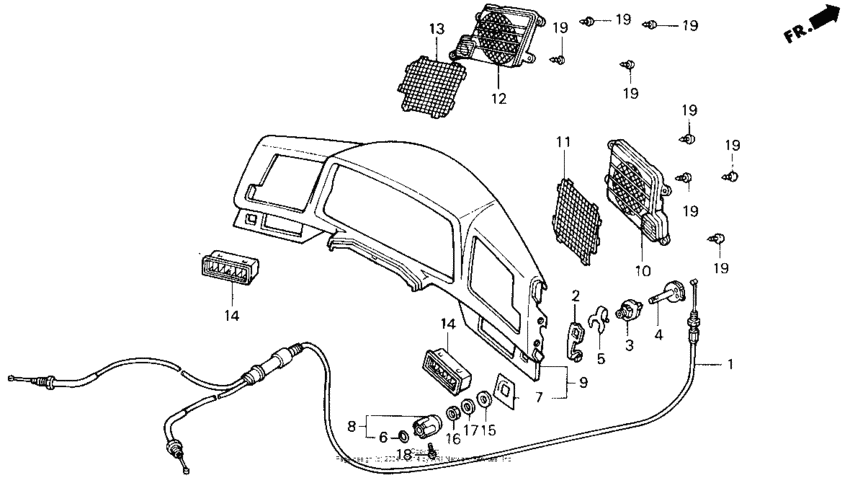

Meter panel se Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 1990
- Model code
- GL1500SE A
- Sales region
- USA
- Frame
- 1HFSC223*LA200001 - 1HFSC223*LA202625
- Engine Capacity
- 1500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18337-MZ3-770 Cable |
18337-MZ3-770 |
from US $59.18 |
||
|
2
|
2
18342-MT8-770
Stay, cable
|
18342-MT8-770 |
— | ||
|
3
|
3
18343-MT8-770 Holder, drum |
18343-MT8-770 |
US $12.18 |
||
|
4
|
4
18344-MT8-770 Drum, cable |
18344-MT8-770 |
US $14.08 |
||
|
5
|
5
18345-MT8-770
Spring, drum
|
18345-MT8-770 |
— | ||
|
6
|
6
18346-MT8-770 Mark (lower) |
18346-MT8-770 |
US $2.86 |
||
|
7
|
7
18347-MT8-770 Mark (lower) |
18347-MT8-770 |
US $6.48 |
||
|
8
|
8
18350-MT8-770 Knob, vent adjusting |
18350-MT8-770 |
US $14.22 |
||
|
9
|
9
64241-MT8-770ZA Pnl *yr139l* (type6) |
64241-MT8-770ZA |
US $218.16 |
||
|
10
|
10
64242-MN5-000ZF
Cvr *yr139l* (type6)
|
64242-MN5-000ZF |
— | ||
|
11
|
11
64243-MN5-000ZF
Grl *yr139l* (type6)
|
64243-MN5-000ZF |
— | ||
|
12
|
12
64247-MN5-000ZF
Cvr *yr139l* (type6)
|
64247-MN5-000ZF |
— | ||
|
13
|
13
64248-MN5-000ZF
Grl *yr139l* (type6)
|
64248-MN5-000ZF |
— | ||
|
14
|
14
64480-MN5-000ZF
Outlet *yr139l*
|
64480-MN5-000ZF |
— | ||
|
15
|
15
90150-MN5-003
Washer, special
|
90150-MN5-003 |
— | ||
|
16
|
16
90153-MN5-003 Nut, special (16mm) |
90153-MN5-003 |
from US $2.70 |
||
|
17
|
17
90154-MN5-003
Washer, special
|
90154-MN5-003 |
— | ||
|
18
|
18
90417-MN5-003 Screw, tapping (4mm) |
90417-MN5-003 |
from US $2 |
||
|
19
|
19
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.37 |
