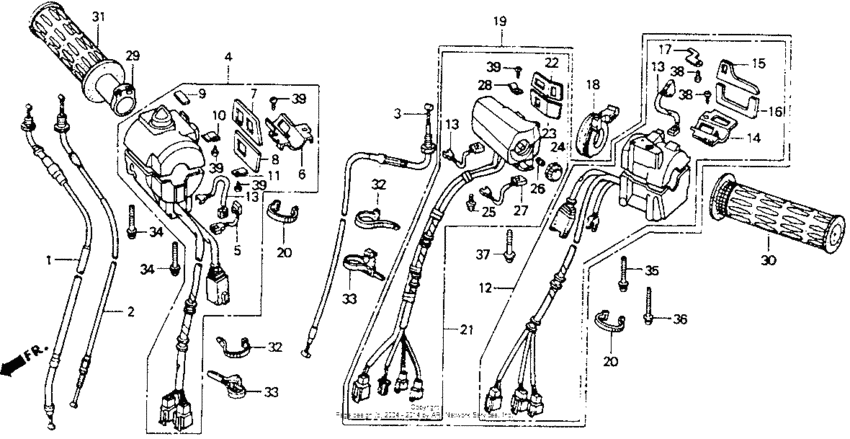

Handle switch (i) Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 1993
- Model code
- GL1500SE A
- Sales region
- USA
- Frame
- 1HFSC223*PA500001 -
- Engine Capacity
- 1500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-MT8-004 Cable A, Throttle |
17910-MT8-004 |
US $62.39 |
||
|
2
|
2
17920-MT8-004 Cable |
17920-MT8-004 |
US $67.76 |
||
|
3
|
3
17950-MN5-004 Cable, choke |
17950-MN5-004 |
US $55.20 |
||
|
4
|
4
35130-MT8-771
Switch assy
|
35130-MT8-771 |
— | ||
|
5
|
5
35131-MT8-771
Bulb a, a (t3)
|
35131-MT8-771 |
— | ||
|
6
|
6
35132-MN5-010
Plate
|
35132-MN5-010 |
— | ||
|
7
|
7
35133-MT8-771
Plate, ornament
|
35133-MT8-771 |
— | ||
|
8
|
8
35134-MT8-771
Plate, ornament
|
35134-MT8-771 |
— | ||
|
9
|
9
35135-MT8-771
Plate c, ornament
|
35135-MT8-771 |
— | ||
|
10
|
10
35136-MT8-771
Clamp a
|
35136-MT8-771 |
— | ||
|
11
|
11
35137-MT8-771
Clamp b
|
35137-MT8-771 |
— | ||
|
12
|
12
35200-MT8-772
Switch, turn signal
|
35200-MT8-772 |
— | ||
|
13
|
13
35201-MT8-771 Bulb (t3) |
35201-MT8-771 |
US $9.70 |
||
|
14
|
14
35202-MN5-010 Plate |
35202-MN5-010 |
US $6.94 |
||
|
15
|
15
35203-MT8-771
Plate, ornament
|
35203-MT8-771 |
— | ||
|
16
|
16
35204-MN5-000 Plate b, ornament |
35204-MN5-000 |
US $3.32 |
||
|
17
|
17
35206-MT8-771
Clamp, wire
|
35206-MT8-771 |
— | ||
|
18
|
18
35209-MN5-000 Lever, choke |
35209-MN5-000 |
US $13.80 |
||
|
19
|
19
35210-MZ3-772
Switch assy
|
35210-MZ3-772 |
— | ||
|
20
|
20
35701-MG9-950 Band (black 3.5x140) |
35701-MG9-950 |
from US $2.15 |
||
|
21
|
21
39200-MZ3-771
Switch, audio & cb
|
39200-MZ3-771 |
— | ||
|
22
|
22
39201-MZ3-771
Plate a, ornament
|
39201-MZ3-771 |
— | ||
|
23
|
23
39202-MZ3-771
Plate b, ornament
|
39202-MZ3-771 |
— | ||
|
24
|
24
39203-MZ3-771
Knob, fader
|
39203-MZ3-771 |
— | ||
|
25
|
25
39204-MZ3-771
Screw-washer (3x8)
|
39204-MZ3-771 |
— | ||
|
26
|
26
39205-MZ3-771
Spring, plate knob
|
39205-MZ3-771 |
— | ||
|
27
|
27
39206-MZ3-771 Bulb (t3) |
39206-MZ3-771 |
US $10.64 |
||
|
28
|
28
39214-MZ3-771
Clamp, cord
|
39214-MZ3-771 |
— | ||
|
29
|
29
53141-MG9-680 Pipe, grip |
53141-MG9-680 |
from US $11.84 |
||
|
30
|
30
53167-MG9-315 Grip, l. handlebar |
53167-MG9-315 |
from US $12.33 |
||
|
31
|
31
53168-MG9-315 Grip, r. handlebar |
53168-MG9-315 |
from US $16.76 |
||
|
32
|
32
90651-MA6-720 BandHARNESS |
90651-MA6-720 |
from US $3.26 |
||
|
33
|
33
90690-GHB-661 Clip, cable, 20mm |
90690-GHB-661 |
from US $2.07 |
||
|
34
|
34
93892-0502507 Screw-washer (5x25) |
93892-0502507 |
from US $0.52 |
||
|
35
|
35
93892-0502807 Screw-washer (5x28) |
93892-0502807 |
from US $0.52 |
||
|
36
|
36
93892-0504507 Screw-washer (5x45) |
93892-0504507 |
from US $0.67 |
||
|
37
|
37
93893-0503208 Screw-washer (5x32) |
93893-0503208 |
US $0.59 |
||
|
38
|
38
93901-32120 ScrewTAPPING, 3X8 |
93901-32120 |
from US $0.37 |
||
|
39
|
39
93901-32220 ScrewTAPPING, 3X10 |
93901-32220 |
from US $0.37 |
