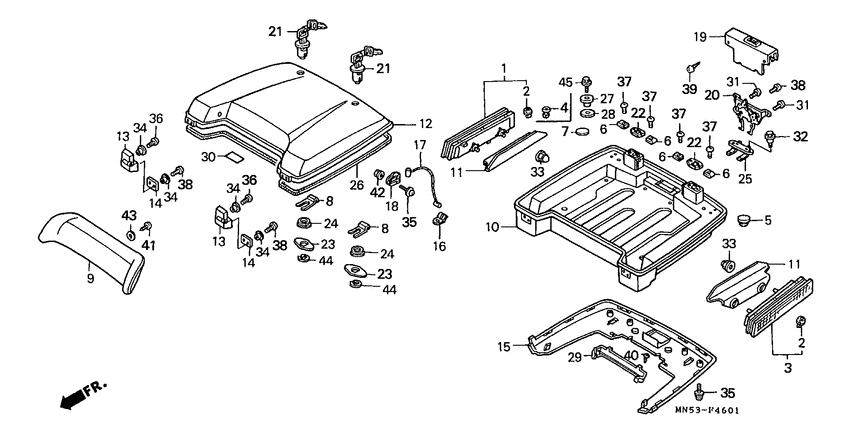

Trunk box (2) Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 1991
- Model code
- GL1500SEM
- Sales region
- Germany
- Frame
- SC224000631 - SC224000880
- Engine Capacity
- 1500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33950-MN5-003
Garnish, r. trunk
|
33950-MN5-003 |
— | ||
| replacement | |||||
|
1
|
1
33950-MT2-004
Garnish, r. trunk
|
33950-MT2-004 |
— | ||
|
1
|
1
33950-MT2-004
Garnish, r. trunk
|
33950-MT2-004 |
— | ||
|
2
|
2
33954-MN5-003 Cap a |
33954-MN5-003 |
from US $2 |
||
|
3
|
3
33980-MN5-003
Garnish, l. trunk
|
33980-MN5-003 |
— | ||
| replacement | |||||
|
3
|
3
33980-MT2-004 Garnish, l. trunk |
33980-MT2-004 |
US $95.37 |
||
|
3
|
3
33980-MT2-004 Garnish, l. trunk |
33980-MT2-004 |
US $95.37 |
||
|
4
|
4
50049-046-000 Plug, head pipe |
50049-046-000 |
from US $2.44 |
||
|
5
|
5
50750-MB0-000 Cap, main stand pipe |
50750-MB0-000 |
from US $4.29 |
||
|
6
|
6
66871-671-000 Nut,glove box |
66871-671-000 |
US $4.48 |
||
|
7
|
7
75826-634-300 SealINSIDE PANEL, 15MM |
75826-634-300 |
from US $1.92 |
||
|
8
|
8
77235-469-000 Spring |
77235-469-000 |
US $7.57 |
||
|
9
|
9
77500-MN5-610ZA
Seat comp*type 1*
|
77500-MN5-610ZA |
— | ||
|
9
|
9
77500-MN5-610ZB
Seat comp*type 2*
|
77500-MN5-610ZB |
— | ||
|
9
|
9
77500-MN5-610ZC
Seat comp.*type3*
|
77500-MN5-610ZC |
— | ||
|
9
|
9
77500-MN5-610ZD
Seat comp.*type4*
|
77500-MN5-610ZD |
— | ||
|
9
|
9
77500-MT8-610ZA
Seat comp.*type5*
|
77500-MT8-610ZA |
— | ||
|
9
|
9
77500-MT8-610ZD
Seat comp.*type4*
|
77500-MT8-610ZD |
— | ||
|
10
|
10
81110-MN5-610ZA
Body
|
81110-MN5-610ZA |
— | ||
|
10
|
10
81110-MN5-610ZB
Body,tru*nh-215m*
|
81110-MN5-610ZB |
— | ||
|
10
|
10
81110-MN5-610ZC
Body,tru*yr-149m*
|
81110-MN5-610ZC |
— | ||
|
10
|
10
81110-MN5-610ZD
Body,trun*r114cu*
|
81110-MN5-610ZD |
— | ||
|
10
|
10
81110-MN5-610ZE
Body,trunk*b127m*
|
81110-MN5-610ZE |
— | ||
|
10
|
10
81110-MN5-610ZF
Body
|
81110-MN5-610ZF |
— | ||
|
10
|
10
81110-MN5-610ZH
Body,trun*yr126m*
|
81110-MN5-610ZH |
— | ||
|
11
|
11
81114-MN5-610 Plate,trunk body |
81114-MN5-610 |
US $60.12 |
||
|
12
|
12
81120-MN5-610ZA
Lid
|
81120-MN5-610ZA |
— | ||
|
12
|
12
81120-MN5-610ZB
Lid,trun*nh-215m*
|
81120-MN5-610ZB |
— | ||
|
12
|
12
81120-MN5-610ZC
Lid,trun*yr-149m*
|
81120-MN5-610ZC |
— | ||
|
12
|
12
81120-MN5-610ZD
Lid,trunk*r114cu*
|
81120-MN5-610ZD |
— | ||
|
12
|
12
81120-MN5-610ZE
Lid,trunk *b127m*
|
81120-MN5-610ZE |
— | ||
|
12
|
12
81120-MN5-610ZF
Lid,trunk*pb224m*
|
81120-MN5-610ZF |
— | ||
|
12
|
12
81120-MW5-890ZA
Lid*yr126m/type2*
|
81120-MW5-890ZA |
— | ||
|
13
|
13
81130-MG9-770 Hinge, trunk |
81130-MG9-770 |
US $53.50 |
||
|
14
|
14
81135-MG9-770 Rubber, hinge |
81135-MG9-770 |
from US $2.79 |
||
|
15
|
15
81140-MN5-610ZA
Cover,tr*pb-192m*
|
81140-MN5-610ZA |
— | ||
|
15
|
15
81140-MN5-610ZB
Cover,tr*nh-215m*
|
81140-MN5-610ZB |
— | ||
|
15
|
15
81140-MN5-610ZC
Cover,tr*yr-149m*
|
81140-MN5-610ZC |
— | ||
|
15
|
15
81140-MN5-610ZD
Cover,tru*r114cu*
|
81140-MN5-610ZD |
— | ||
|
15
|
15
81140-MN5-610ZE
Cover,trun*b127m*
|
81140-MN5-610ZE |
— | ||
|
15
|
15
81140-MN5-610ZF
Cover,tru*pb224m*
|
81140-MN5-610ZF |
— | ||
|
15
|
15
81140-MN5-610ZH
Cover,tru*yr126m*
|
81140-MN5-610ZH |
— | ||
|
16
|
16
81222-GA7-810 Stay, lid stopper |
81222-GA7-810 |
US $3.48 |
||
|
17
|
17
81250-MN5-610
Stopper,trunk lid
|
81250-MN5-610 |
— | ||
|
18
|
18
81254-MN5-000 Stay b, lid stopper |
81254-MN5-000 |
from US $2.96 |
||
|
19
|
19
81305-MN5-610
Cover,opener unit
|
81305-MN5-610 |
— | ||
|
20
|
20
81310-MN5-611 Opener unit |
81310-MN5-611 |
US $99.98 |
||
|
21
|
21
81312-MN5-611 Lock,trunk lid |
81312-MN5-611 |
US $28.86 |
||
|
22
|
22
81313-MN5-610 Plate,trunk lock |
81313-MN5-610 |
US $12.33 |
||
|
23
|
23
81316-MN5-611 Plate,cam |
81316-MN5-611 |
US $3.93 |
||
|
24
|
24
81317-MN5-611 Collar |
81317-MN5-611 |
US $2.55 |
||
|
25
|
25
81335-MN5-611 Lever assy.,lugga |
81335-MN5-611 |
US $23.39 |
||
|
26
|
26
81350-MN5-610
Rubber,trunk seal
|
81350-MN5-610 |
— | ||
|
27
|
27
81355-MN5-000 Collar |
81355-MN5-000 |
from US $4.37 |
||
|
28
|
28
81356-MN5-000 Rubber, bag setting |
81356-MN5-000 |
from US $1.63 |
||
|
29
|
29
84705-MN5-000
Cover, license light
|
84705-MN5-000 |
— | ||
|
29
|
29
84705-MT8-000 Cover, license light |
84705-MT8-000 |
from US $22 |
||
|
30
|
30
87505-MN5-630 Mark,tire caution |
87505-MN5-630 |
US $5.10 |
||
|
31
|
31
90104-964-000 Screw, pan (5x12) |
90104-964-000 |
from US $2.15 |
||
|
32
|
32
90112-GC6-000 Bolt, flange, 6mm |
90112-GC6-000 |
from US $3.85 |
||
|
33
|
33
90167-SA0-980 NutFLANGE CAP, 5MM |
90167-SA0-980 |
from US $2.89 |
||
|
34
|
34
90413-369-690 Washer,setting |
90413-369-690 |
US $5.53 |
||
|
35
|
35
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
36
|
36
93891-050-120-7 Screw-washer5X12 |
93891-050-120-7 |
from US $0.44 |
||
|
36
|
36
93893-050-120-7 Screw-washer5X12 |
93893-050-120-7 |
from US $0.52 |
||
|
37
|
37
93891-050-160-7 Screw-washer5X16 |
93891-050-160-7 |
from US $0.49 |
||
|
38
|
38
93893-050-120-7 Screw-washer5X12 |
93893-050-120-7 |
from US $0.52 |
||
|
39
|
39
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.22 |
||
|
40
|
40
93903-24480 ScrewTAPPING, 4X16 |
93903-24480 |
from US $0.37 |
||
|
41
|
41
93903-25380 ScrewTAPPING, 5X16 |
93903-25380 |
from US $0.37 |
||
|
42
|
42
9405004000 Nut, flange, 4mm |
9405004000 |
from US $0.44 |
||
|
43
|
43
94103-05700 WasherPLAIN, 5MM |
94103-05700 |
from US $0.37 |
||
|
44
|
44
94540-07018 E-ring7MM |
94540-07018 |
from US $1.85 |
||
|
45
|
45
96001-0602007 Bolt, flange (6x20) |
96001-0602007 |
from US $0.59 |
||
