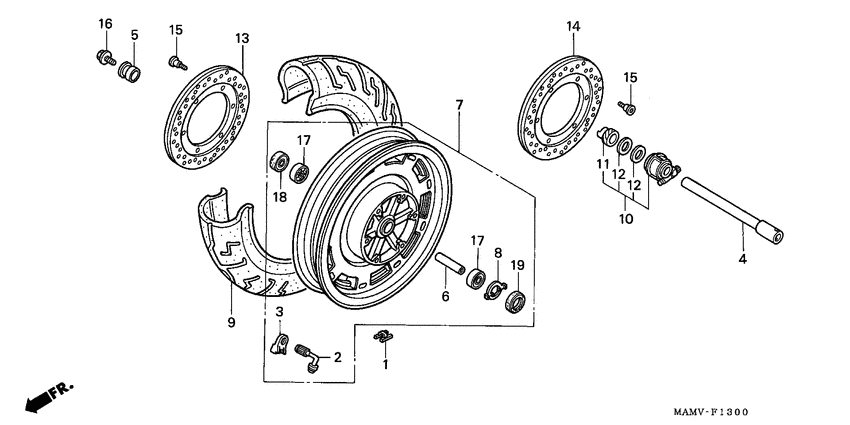

Front wheel Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 2000
- Model code
- GL1500SEY
- Sales region
- Europe
- Frame
- 1HFSC22B*YA300001 - 1HFSC22B*YA399999
- Engine Capacity
- 1500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MB0-000
Weight (10g)
|
42704-MB0-000 |
— | ||
| replacement | |||||
|
1
|
1
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
1
|
1
42705-MB0-000 Weight (20g) |
42705-MB0-000 |
US $14.50 |
||
| replacement | |||||
|
1
|
1
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42706-MB0-000 Weight (30g) |
42706-MB0-000 |
US $17.65 |
||
| replacement | |||||
|
1
|
1
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
2
|
2
42753-MN5-004 Valve, rim |
42753-MN5-004 |
from US $9.22 |
||
|
3
|
3
42754-MN5-000 Hold, rim valve |
42754-MN5-000 |
from US $2.25 |
||
|
4
|
4
44301-MR5-000
Axle, fr. wheel
|
44301-MR5-000 |
— | ||
| replacement | |||||
|
4
|
4
44301-MR8-900
Axle, fr. wheel
|
44301-MR8-900 |
— | ||
|
5
|
5
44311-ML7-000
Colr, fr. wheel side
|
44311-ML7-000 |
— | ||
| replacement | |||||
|
5
|
5
44311-MM8-000 Colr, fr. wheel side |
44311-MM8-000 |
from US $11.40 |
||
|
6
|
6
44620-MW5-000 Collar, fr |
44620-MW5-000 |
from US $9.55 |
||
|
7
|
7
44650-MAM-E70
Wheel set,fr
|
44650-MAM-E70 |
— | ||
|
8
|
8
44680-MT2-000 Retainer, gear box |
44680-MT2-000 |
US $18.85 |
||
|
9
|
9
44711-MN5-015
Tire (130/70-18)
|
44711-MN5-015 |
— | ||
|
10
|
10
44800-MT2-003 Box assy |
44800-MT2-003 |
from US $102.68 |
||
|
11
|
11
44806-MT2-003 Gear, speedometer |
44806-MT2-003 |
from US $21.35 |
||
|
12
|
12
44809-ML7-003 Washer |
44809-ML7-003 |
from US $3.26 |
||
|
13
|
13
45251-MT8-000 Disk, r. fr. brake |
45251-MT8-000 |
US $346.80 |
||
|
14
|
14
45351-MT8-000 Disk, l. fr. brake |
45351-MT8-000 |
from US $346.80 |
||
|
15
|
15
90105-MBB-000 Bolt (8x24) |
90105-MBB-000 |
US $4.44 |
||
| replacement | |||||
|
15
|
15
90105-MV9-003 Bolt, disk (8x24) |
90105-MV9-003 |
from US $4.44 |
||
|
16
|
16
90305-ML7-000 Bolt, fr. axle |
90305-ML7-000 |
from US $4.43 |
||
|
17
|
17
91054-MAM-003 Bearing (6004uu) |
91054-MAM-003 |
from US $12.04 |
||
|
18
|
18
91257-MAY-003 Dust seal (28x42x8) |
91257-MAY-003 |
from US $9.77 |
||
|
19
|
19
91258-ML7-003 Dust seal (45x55x5) |
91258-ML7-003 |
from US $5.11 |
||
|
19
|
19
91258-ML7-004
Dust seal (45x55x5)
|
91258-ML7-004 |
— | ||
| replacement | |||||
|
19
|
19
91258-ML7-003 Dust seal (45x55x5) |
91258-ML7-003 |
from US $5.11 |
||
