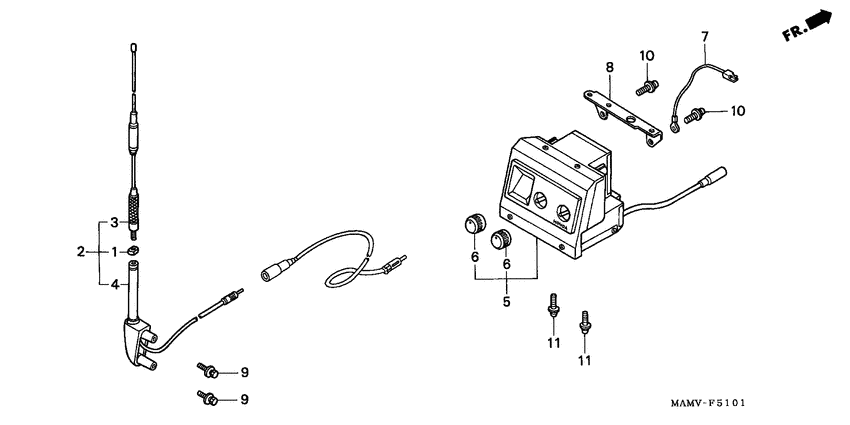

Cb transceiver Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 2000
- Model code
- GL1500SEY
- Sales region
- Australia
- Frame
- 1HFSC22U*YA705001 - 1HFSC22U*YA799999
- Engine Capacity
- 1500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39153-MN5-003 Nut, antenna |
39153-MN5-003 |
from US $2.89 |
||
|
2
|
2
39160-MAM-771
Antenna assy., cb
|
39160-MAM-771 |
— | ||
|
3
|
3
39161-MAF-770
Element, cb antenna
|
39161-MAF-770 |
— | ||
|
4
|
4
39162-MAM-771
*39160-mam-771
|
39162-MAM-771 |
— | ||
|
5
|
5
39250-MAM-U11
Transceiver unit,
|
39250-MAM-U11 |
— | ||
|
6
|
6
39251-MZ3-770
Knob, cb
|
39251-MZ3-770 |
— | ||
|
7
|
7
39255-MZ3-770
Sub-wire, cb ground
|
39255-MZ3-770 |
— | ||
|
8
|
8
64236-MZ3-770
Bracket, cb mounting
|
64236-MZ3-770 |
— | ||
|
9
|
9
93401-060-160-8 Bolt-washer6X16 |
93401-060-160-8 |
from US $0.58 |
||
|
10
|
10
93892-060-120-8 Screw-washer6X12 |
93892-060-120-8 |
from US $0.52 |
||
|
11
|
11
93894-0601208 Screw-washer (6x12) |
93894-0601208 |
from US $0.52 |
