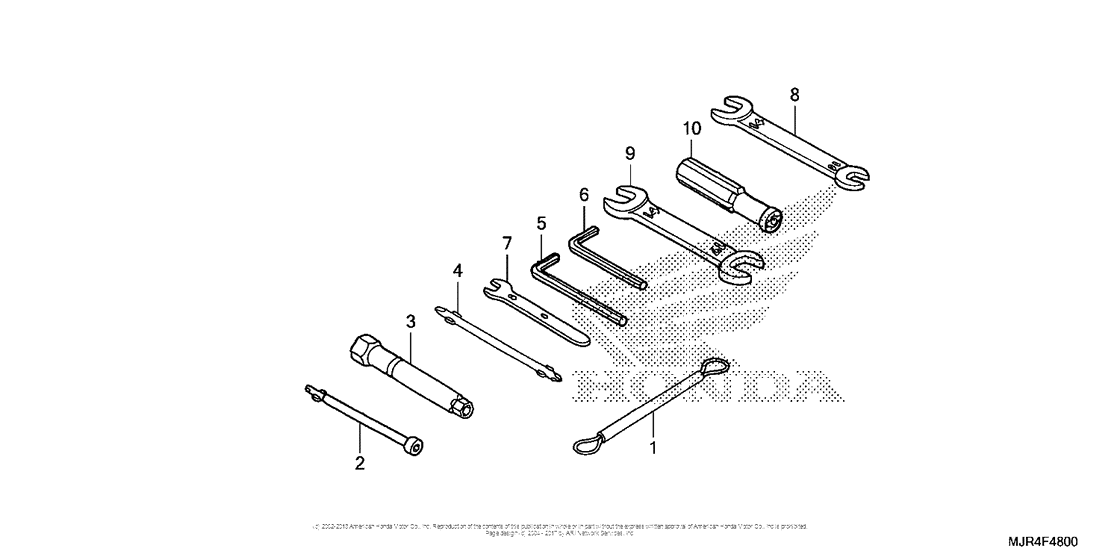

Tools Diagram Honda GL1800 Gold Wing Valkyrie
- Year
- 2015
- Model code
- GL1800C AC
- Sales region
- USA
- Frame
- JH2SC680 - FK100001
- Engine Capacity
- 1800
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77236-KAZ-780 Wire, helmet set |
77236-KAZ-780 |
from US $8.29 |
||
|
2
|
2
89214-ML0-000 Wrench, box (10) |
89214-ML0-000 |
from US $11.40 |
||
|
3
|
3
89216-MY9-000 Wrench, plug (16mm) |
89216-MY9-000 |
from US $10.11 |
||
|
4
|
4
89217-MAT-000 Driver, screw (no.2 + -) |
89217-MAT-000 |
from US $6.51 |
||
|
5
|
5
89221-371-000 Wrench, hex., 6mm |
89221-371-000 |
from US $7.02 |
||
|
6
|
6
89221-429-000 Wrench, hex. (5mm) |
89221-429-000 |
from US $5.62 |
||
|
7
|
7
9900108000 Spanner, 8 |
9900108000 |
from US $3.11 |
||
|
8
|
8
9900110140 Spanner, 10x14 |
9900110140 |
from US $5.19 |
||
|
9
|
9
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
10
|
10
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
