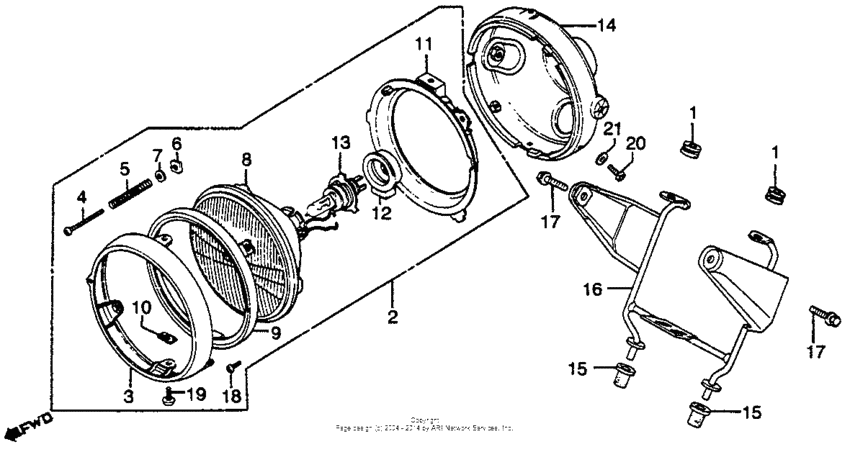

Gl650 headlight Diagram Honda GL650 Silver Wing
- Year
- 1983
- Model code
- GL650 A
- Sales region
- USA
- Frame
- JH2RC100*DM000004 -
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
33100-431-671
Headlight assy
|
33100-431-671 |
— | ||
|
3
|
3
33101-405-671 Rim, headlight |
33101-405-671 |
from US $81.24 |
||
|
4
|
4
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
4
|
4
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
5
|
5
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
6
|
6
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
7
|
7
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
8
|
8
33120-431-671
Unit, headlight.
|
33120-431-671 |
— | ||
|
9
|
9
33121-405-671
Ring, retaining
|
33121-405-671 |
— | ||
|
10
|
10
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
11
|
11
33153-375-671
Ring, setting
|
33153-375-671 |
— | ||
|
12
|
12
33180-422-003 Cover, rubber |
33180-422-003 |
US $19.16 |
||
|
13
|
13
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
13
|
13
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
14
|
14
61301-371-003
Case, head light
|
61301-371-003 |
— | ||
|
15
|
15
61313-422-000 Grommet b, headlight |
61313-422-000 |
from US $6.17 |
||
|
16
|
16
61315-ME2-000
Brkt, headlight case
|
61315-ME2-000 |
— | ||
|
17
|
17
90130-126-900 Bolt, flange (10x20) |
90130-126-900 |
from US $2.44 |
||
|
18
|
18
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
19
|
19
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
20
|
20
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
21
|
21
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
