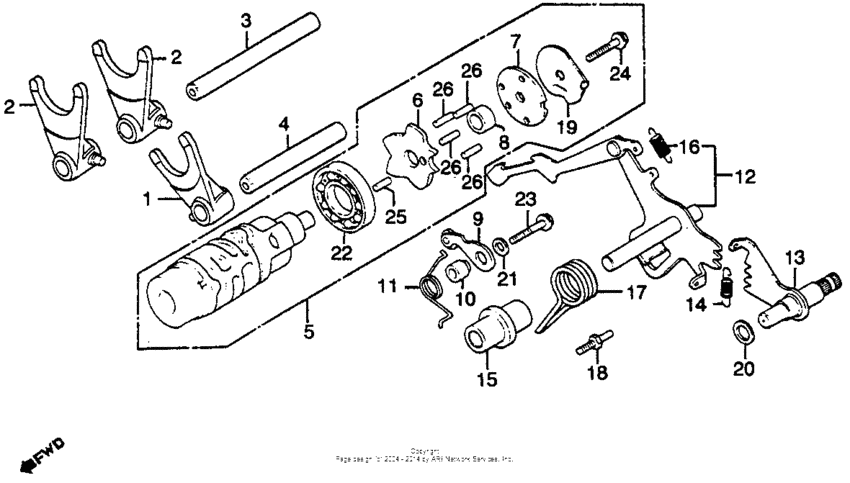

Shift drum + shift fork Diagram Honda GL650 Silver Wing
- Year
- 1983
- Model code
- GL650 A
- Sales region
- USA
- Frame
- JH2RC100*DM000004 -
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24216-ME2-000
Fork,m/shaft 3rd
|
24216-ME2-000 |
— | ||
|
2
|
2
24221-MC7-000
Fork,ct0shaft 5th
|
24221-MC7-000 |
— | ||
|
3
|
3
24241-MC7-000
Shaft a,fork guid
|
24241-MC7-000 |
— | ||
|
4
|
4
24242-MC7-000
Shaft,b,fork guid
|
24242-MC7-000 |
— | ||
|
5
|
5
24300-MC7-000
Drum,gearshift
|
24300-MC7-000 |
— | ||
|
6
|
6
24303-MC7-000
Plate,drum cam
|
24303-MC7-000 |
— | ||
|
7
|
7
24304-415-000
Plate,drum center
|
24304-415-000 |
— | ||
|
8
|
8
24305-415-000
Collar,drumcenter
|
24305-415-000 |
— | ||
|
9
|
9
24430-413-000
Stopper comp,drum
|
24430-413-000 |
— | ||
|
10
|
10
24432-413-000 Collar |
24432-413-000 |
from US $6.36 |
||
|
11
|
11
24435-415-000
Spg,drum stopper
|
24435-415-000 |
— | ||
|
12
|
12
24610-415-000
Arm,gearshift
|
24610-415-000 |
— | ||
|
13
|
13
24620-415-000
Spindle,gearshift
|
24620-415-000 |
— | ||
|
14
|
14
24623-415-000
Spring,gearshift
|
24623-415-000 |
— | ||
|
15
|
15
24624-415-000
Collar,shift arm
|
24624-415-000 |
— | ||
|
16
|
16
24641-216-000 Spring |
24641-216-000 |
from US $2.80 |
||
|
17
|
17
24651-333-000
Spring,gear shift
|
24651-333-000 |
— | ||
|
18
|
18
24652-259-000 Pin |
24652-259-000 |
from US $4.74 |
||
|
19
|
19
35753-415-000
Plate,point
|
35753-415-000 |
— | ||
|
20
|
20
90451-708-000
Washer, 12mm
|
90451-708-000 |
— | ||
|
21
|
21
90486-028-000 Washer, spark advancer setting |
90486-028-000 |
from US $2.65 |
||
|
22
|
22
91008-374-003 Bearing (16005) |
91008-374-003 |
from US $10.21 |
||
|
23
|
23
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
24
|
24
95725-060-250-0 Bolt,flange,6x25 |
95725-060-250-0 |
US $0.59 |
||
|
25
|
25
9622040118 Roller (4x11.8) |
9622040118 |
from US $0.22 |
||
|
26
|
26
96220-40140 Rollar, 4x14 |
96220-40140 |
US $0.22 |
