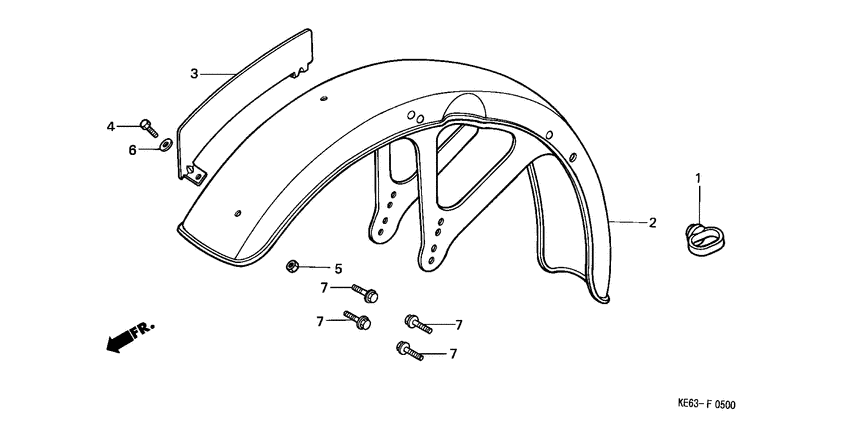

Front fender Diagram Honda HA100
- Year
- 1983
- Model code
- H100SD
- Sales region
- Nigeria
- Frame
- HA045000052 - HA045000055
- Engine Capacity
- 100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45451-471-000 Grommet, cable |
45451-471-000 |
from US $4.51 |
||
|
2
|
2
61100-KE6-860
Fender comp
|
61100-KE6-860 |
— | ||
|
3
|
3
61136-KE6-860
Plate
|
61136-KE6-860 |
— | ||
|
4
|
4
93500-050-080-G ScrewPAN, 5X8 |
93500-050-080-G |
from US $0.37 |
||
|
5
|
5
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
6
|
6
94101-05700 WasherPLAIN, 5MM |
94101-05700 |
from US $0.37 |
||
|
7
|
7
95700-060-100-0 BoltFLANGE, 6X10 |
95700-060-100-0 |
US $0.52 |
||
| replacement | |||||
|
7
|
7
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
