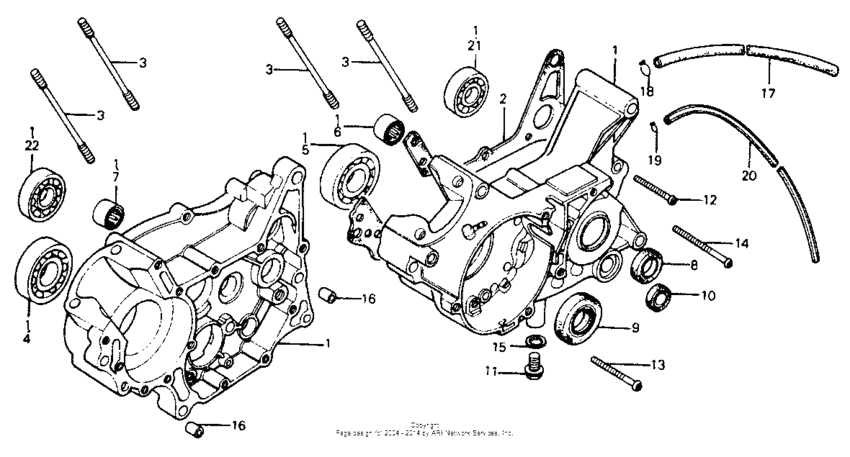

Crankcase Diagram Honda MR175
- Model code
- MR175 A
- Sales region
- USA
- Frame
- MR1751000001 - MR1751008522
- Engine Capacity
- 175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-373-000
Crankcase set
|
11000-373-000 |
— | ||
|
2
|
2
11191-373-306
Gasket, crankcase
|
11191-373-306 |
— | ||
|
3
|
3
90031-373-000
Stud (8x116)
|
90031-373-000 |
— | ||
|
4
|
4
91002-KY4-901 Bearing (63/22) |
91002-KY4-901 |
from US $29.24 |
||
|
5
|
5
91002-360-005 B/brg rad n/com |
91002-360-005 |
US $22.40 |
||
|
6
|
6
91106-KC6-003
Needle brg
|
91106-KC6-003 |
— | ||
|
7
|
7
91016-360-006
Needle brg
|
91016-360-006 |
— | ||
|
8
|
8
91201-360-005 Oil seal, 20x32x6 (nok) |
91201-360-005 |
from US $6.81 |
||
|
9
|
9
91204-360-003
Oil seal 25x45x7.
|
91204-360-003 |
— | ||
|
10
|
10
91206-286-013 Oil seal, 14x28x7 (arai) |
91206-286-013 |
from US $4.59 |
||
|
11
|
11
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.26 |
||
|
12
|
12
93500-060450A Screw, pan, 6x45 |
93500-060450A |
from US $0.59 |
||
|
13
|
13
93500-060-650-A Screw, pan (6x65) |
93500-060-650-A |
from US $0.74 |
||
|
14
|
14
93500-060-800-A Screw pan 6x80 |
93500-060-800-A |
from US $0.74 |
||
|
15
|
15
94109-12000 Washer, DRAIN PLUG, 12MM |
94109-12000 |
from US $0.98 |
||
|
16
|
16
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
17
|
17
95001-550-0360M Bulk hose (5.5x3000) |
95001-550-0360M |
from US $24.48 |
||
|
18
|
18
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
19
|
19
9500235000 Clip, tube (c6.5) |
9500235000 |
from US $0.37 |
||
|
20
|
20
95003-080-751-0
Tube (4.5x6.5x750)
|
95003-080-751-0 |
— | ||
|
21
|
21
96100-6304000 Bearing, radial ball, 6304 |
96100-6304000 |
from US $8.44 |
||
|
22
|
22
96120-630-401-0 B/brg rad n/com |
96120-630-401-0 |
from US $9.92 |
