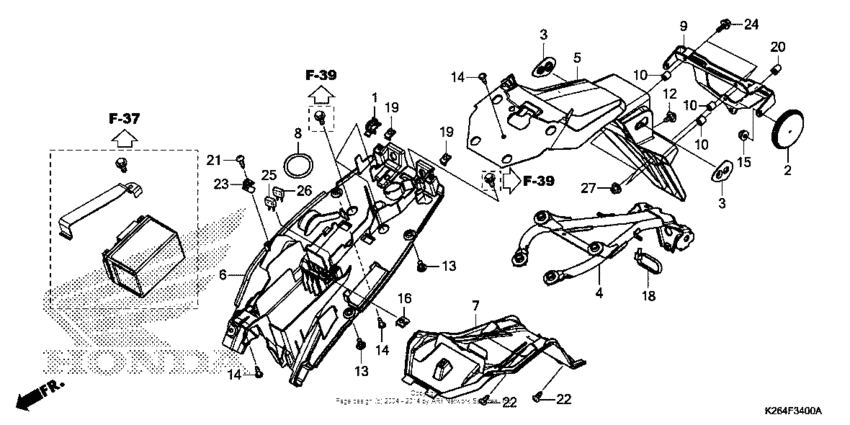

Rear fender Diagram Honda MSX125 Grom
- Year
- 2014
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611*E5000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32161-393-003 Clip, wire harness |
32161-393-003 |
from US $3.92 |
||
|
2
|
2
33741-HB9-641 Reflector, rr. |
33741-HB9-641 |
from US $16.43 |
||
|
3
|
3
33941-K26-950 Plate, turn signal |
33941-K26-950 |
from US $6.81 |
||
|
4
|
4
50188-K26-950 Stay, rr. fender |
50188-K26-950 |
from US $70.04 |
||
|
5
|
5
80100-K26-900ZB Fender set a (type1) |
80100-K26-900ZB |
from US $21.23 |
||
|
6
|
6
80101-K26-900 Fender b, rr. |
80101-K26-900 |
from US $18.29 |
||
|
7
|
7
80102-K26-900 Fender, rr. (inner) |
80102-K26-900 |
from US $9.52 |
||
|
8
|
8
80124-K26-900 Band, tool(Optional). |
80124-K26-900 |
from US $3.55 |
||
|
9
|
9
84701-K26-910 Bracket, number plate |
84701-K26-910 |
US $66.88 |
||
|
10
|
10
84702-K26-950 Collar, number bracket |
84702-K26-950 |
US $1.26 |
||
|
12
|
12
90111-KZZ-900 Bolt, flange (6mm) |
90111-KZZ-900 |
from US $0.94 |
||
|
13
|
13
90115-KW7-900 Screw, visor special setting |
90115-KW7-900 |
from US $1.28 |
||
|
14
|
14
90116-MCS-G00 Push rivet |
90116-MCS-G00 |
from US $1.10 |
||
|
15
|
15
90301-KGH-901 Nut,u,6mm |
90301-KGH-901 |
from US $1.92 |
||
|
16
|
16
90320-MM5-000 Nut, spring, 6mm |
90320-MM5-000 |
from US $1.89 |
||
|
18
|
18
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.96 |
||
|
19
|
19
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
20
|
20
90899-422-610 Plug, cone type |
90899-422-610 |
from US $2.74 |
||
|
21
|
21
93903-24310 ScrewTAPPING, 4X12 |
93903-24310 |
from US $0.37 |
||
|
22
|
22
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
||
|
23
|
23
94591-27000 Clip2X70 |
94591-27000 |
from US $1.04 |
||
|
24
|
24
95801-060-250-7 BoltFLANGE, 6X25 |
95801-060-250-7 |
from US $0.59 |
||
|
25
|
25
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
26
|
26
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
27
|
27
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
