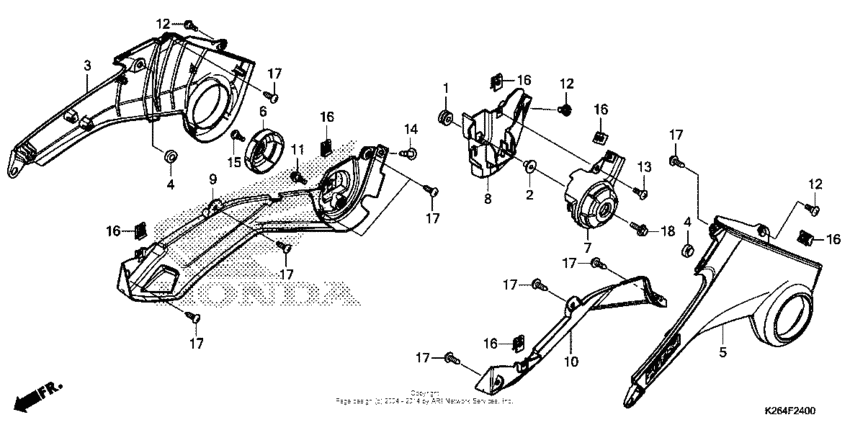

Side cover Diagram Honda MSX125 Grom
- Year
- 2014
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611*E5000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
2
|
2
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
3
|
3
83510-K26-900ZD Cvr, r. si (type1)Asteroid black metallic NHA35M; |
83510-K26-900ZD |
from US $41.26 |
||
|
3
|
3
83510-K26-900ZB Cvr, r. si (type3)Pearl valentine red R353P; |
83510-K26-900ZB |
from US $39.92 |
||
|
4
|
4
83512-KZZ-900 Rubber |
83512-KZZ-900 |
from US $1.92 |
||
|
5
|
5
83520-K26-900ZD Cvr, l. si (type1)Asteroid black metallic NHA35M; |
83520-K26-900ZD |
from US $41.26 |
||
|
5
|
5
83520-K26-900ZB Cvr, l. si (type3)Pearl valentine red R353P; |
83520-K26-900ZB |
from US $39.93 |
||
|
6
|
6
83545-K26-900ZA Garnish, r. *nh364m* |
83545-K26-900ZA |
from US $9.92 |
||
|
7
|
7
83555-K26-900ZA Garnish, l. *nh364m* |
83555-K26-900ZA |
from US $13.50 |
||
|
8
|
8
83556-K26-900 Cover, seat lock |
83556-K26-900 |
from US $21.08 |
||
|
9
|
9
83680-K26-900 Cover, r. shroud |
83680-K26-900 |
from US $12.44 |
||
|
10
|
10
83690-K26-900 Cover, l. shroud |
83690-K26-900 |
from US $12.44 |
||
|
11
|
11
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
12
|
12
90115-KW7-900 Screw, visor special setting |
90115-KW7-900 |
from US $1.28 |
||
|
13
|
13
90115-KWW-620 Screw |
90115-KWW-620 |
from US $1.38 |
||
|
14
|
14
90116-MCS-G00 Push rivet |
90116-MCS-G00 |
from US $1.10 |
||
|
15
|
15
90134-KPP-T00 Screw, pan (5x14) |
90134-KPP-T00 |
from US $0.49 |
||
|
16
|
16
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
17
|
17
93903-24210 ScrewTAPPING, 4X10 |
93903-24210 |
from US $0.37 |
||
|
18
|
18
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
