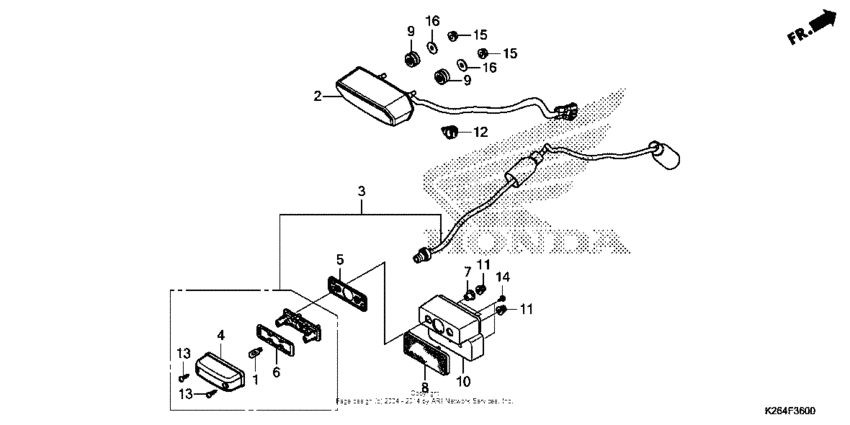

Taillight Diagram Honda MSX125 Grom
- Year
- 2014
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611*E5000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-K07-901 Bulb (12v 5w) |
33301-K07-901 |
from US $2.44 |
||
|
2
|
2
33701-K26-305 Taillight unit (coo) |
33701-K26-305 |
US $179.33 |
||
|
3
|
3
33720-K26-305 Light assy., license (coo) |
33720-K26-305 |
US $87.99 |
||
|
4
|
4
33722-K26-305 Cover, license (coo) |
33722-K26-305 |
US $12.02 |
||
|
5
|
5
33728-KPP-T00 Rub, license light |
33728-KPP-T00 |
from US $2.95 |
||
|
6
|
6
33729-MCZ-003 Gasket, lens |
33729-MCZ-003 |
from US $5.77 |
||
|
7
|
7
33731-MJ0-940 Collar |
33731-MJ0-940 |
from US $2.96 |
||
|
8
|
8
33741-KPL-902 REFLECTOR REFLEX |
33741-KPL-902 |
from US $0.85 |
||
|
9
|
9
77209-K26-900 Rubber |
77209-K26-900 |
from US $1.70 |
||
|
10
|
10
80201-KYJ-920 Brkt, license light |
80201-KYJ-920 |
US $10.85 |
||
|
11
|
11
90301-KWN-901 Nut,u,5mm |
90301-KWN-901 |
from US $0.88 |
||
|
12
|
12
90683-SA0-003 ClipWIRE HARNESS, 25MM |
90683-SA0-003 |
from US $3.11 |
||
|
13
|
13
93901-24480 ScrewTAPPING, 4X16 |
93901-24480 |
from US $0.41 |
||
|
14
|
14
93903-44380 ScrewTAPPING, 4X12 |
93903-44380 |
from US $0.41 |
||
|
15
|
15
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
16
|
16
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
