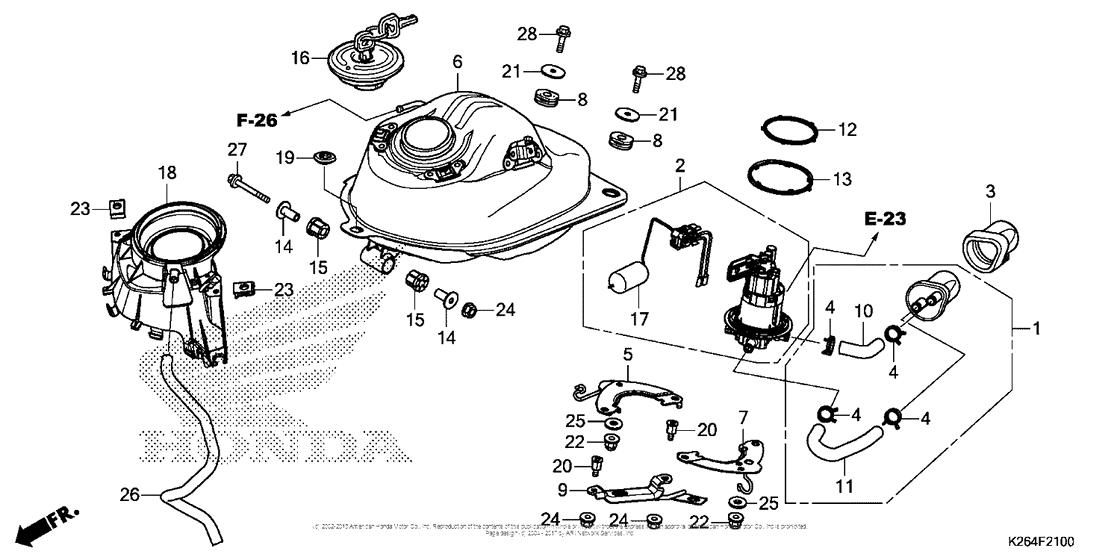

Fuel Tank Diagram Honda MSX125 Grom
- Year
- 2015
- Model code
- GROM125 2AC
- Sales region
- USA
- Frame
- MLHJC611 - F5100001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06160-K26-910 Filter kit, fuel |
06160-K26-910 |
US $28.05 |
||
| replacement | |||||
|
1
|
1
06160-K26-911 FILTER KIT, FUEL |
06160-K26-911 |
US $79.12 |
||
|
1
|
1
06160-K26-911 FILTER KIT, FUEL |
06160-K26-911 |
US $79.12 |
||
|
2
|
2
16700-K26-905 Pump Assy., Fuel |
16700-K26-905 |
from US $229.70 |
||
|
3
|
3
16912-K26-900 Holder, fuel filter |
16912-K26-900 |
from US $5.44 |
||
|
4
|
4
16962-KYJ-920 Clamp, tube (14.0) |
16962-KYJ-920 |
US $2.06 |
||
|
5
|
5
17507-K26-900 Plate, r. setting |
17507-K26-900 |
from US $7 |
||
|
6
|
6
17510-K26-910 Tank, fuel |
17510-K26-910 |
US $192.41 |
||
|
7
|
7
17517-K26-910 Plate, l. setting |
17517-K26-910 |
US $21.15 |
||
|
8
|
8
17531-K26-900 Rubber, tank |
17531-K26-900 |
from US $2.16 |
||
|
9
|
9
17540-K26-900 Stay, fuel filter |
17540-K26-900 |
from US $10.13 |
||
|
10
|
10
17541-K26-910 Tube a, fuel pump |
17541-K26-910 |
US $10.10 |
||
| replacement | |||||
|
10
|
10
17541-K26-911 TUBE A, FUEL PUMP |
17541-K26-911 |
US $13.24 |
||
|
10
|
10
17541-K26-911 TUBE A, FUEL PUMP |
17541-K26-911 |
US $13.24 |
||
|
11
|
11
17542-K26-910 Tube b, fuel pump |
17542-K26-910 |
US $30.16 |
||
|
12
|
12
17572-K26-900 Gasket, fuel pump |
17572-K26-900 |
from US $13.17 |
||
|
13
|
13
17573-K26-900 Dust seal |
17573-K26-900 |
from US $3.57 |
||
|
14
|
14
17614-K26-900 Collar, fuel tank |
17614-K26-900 |
from US $2.09 |
||
|
15
|
15
17615-K26-900 Cushion, rr |
17615-K26-900 |
from US $2.16 |
||
|
16
|
16
17620-K26-911 Cap, fuel filler |
17620-K26-911 |
US $149.01 |
||
|
17
|
17
37800-K26-902 Fuel unit |
37800-K26-902 |
from US $44.61 |
||
|
18
|
18
64460-K26-900 Cover, tank cap |
64460-K26-900 |
from US $8.72 |
||
|
19
|
19
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
20
|
20
90101-K26-900 Bolt, special (6mm) |
90101-K26-900 |
from US $3.11 |
||
|
21
|
21
90136-428-870 Washer, tank setting |
90136-428-870 |
from US $2.37 |
||
|
22
|
22
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
23
|
23
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
24
|
24
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
25
|
25
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
26
|
26
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $11.25 |
||
|
27
|
27
95701-0606000 Bolt, flange, 6x60 |
95701-0606000 |
from US $0.49 |
||
|
28
|
28
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
