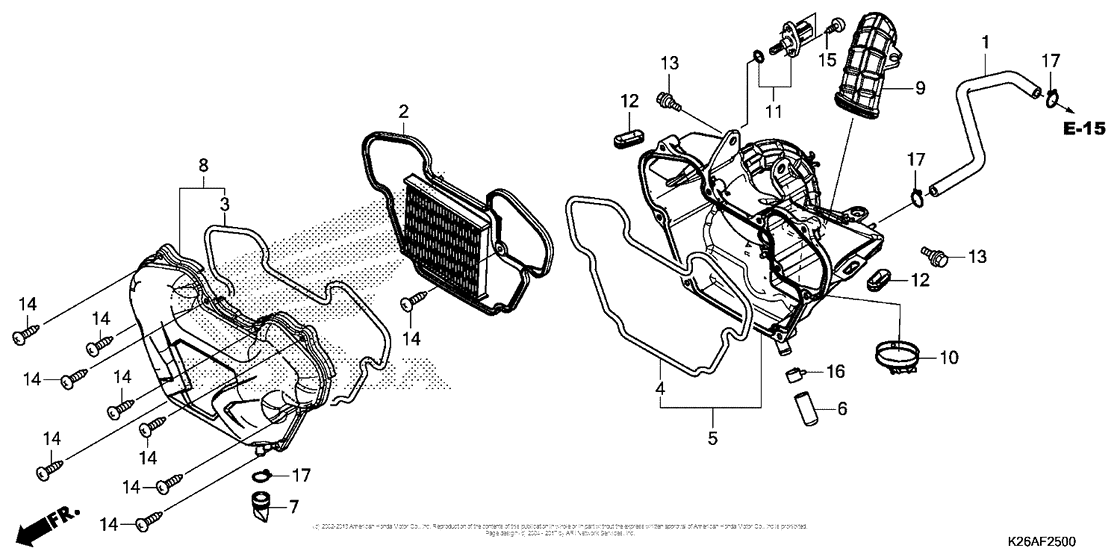

Air Cleaner Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15761-K26-900 Tube, breather |
15761-K26-900 |
from US $9.42 |
||
|
2
|
2
17210-K26-900 Element, air cleaner |
17210-K26-900 |
from US $9.84 |
||
|
3
|
3
17214-K26-900 Seal |
17214-K26-900 |
from US $4.28 |
||
|
4
|
4
17215-K26-900 Seal, a/clnr hsg |
17215-K26-900 |
from US $3.52 |
||
|
5
|
5
17225-K26-921 CASE SUB-ASSY. |
17225-K26-921 |
from US $42.23 |
||
|
6
|
6
17227-KPK-900 Tube (11x15x35) |
17227-KPK-900 |
from US $3.84 |
||
|
7
|
7
17234-KCW-871 Tube |
17234-KCW-871 |
from US $2.96 |
||
|
8
|
8
17235-K26-900 Cvr sub, a/clnr |
17235-K26-900 |
from US $11.25 |
||
|
9
|
9
17241-K26-900 Duct, air cleaner |
17241-K26-900 |
from US $14.01 |
||
|
10
|
10
17254-K26-900 Band (44) |
17254-K26-900 |
from US $5.03 |
||
|
11
|
11
37880-KWW-C01 Sensor, air temp |
37880-KWW-C01 |
from US $35.56 |
||
|
12
|
12
83601-MB0-000 Grommet a, side cover |
83601-MB0-000 |
from US $2.95 |
||
|
13
|
13
90116-KVB-900 Bolt,flange 6mm |
90116-KVB-900 |
from US $1.45 |
||
|
14
|
14
93903-25580 ScrewTAPPING, 5X25 |
93903-25580 |
from US $0.44 |
||
|
15
|
15
9391125520 Screw, tap (5x20) |
9391125520 |
from US $0.44 |
||
|
16
|
16
95002-413-000-8 ClampTUBE(D13) |
95002-413-000-8 |
from US $1.04 |
||
|
17
|
17
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
