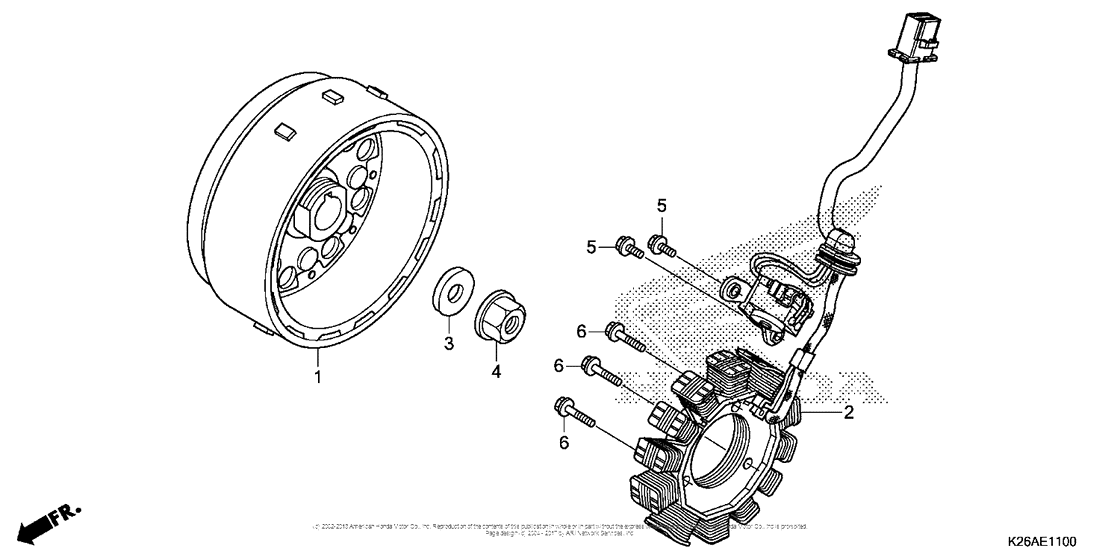

Alternator + Flywheel Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31110-K26-B01 FLYWHEEL |
31110-K26-B01 |
from US $74.94 |
||
|
2
|
2
31120-K26-B01 STATOR |
31120-K26-B01 |
from US $50.49 |
||
|
3
|
3
90439-KWZ-900 Washer (12x24x2.3) |
90439-KWZ-900 |
from US $1.34 |
||
|
4
|
4
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
|
5
|
5
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
6
|
6
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
