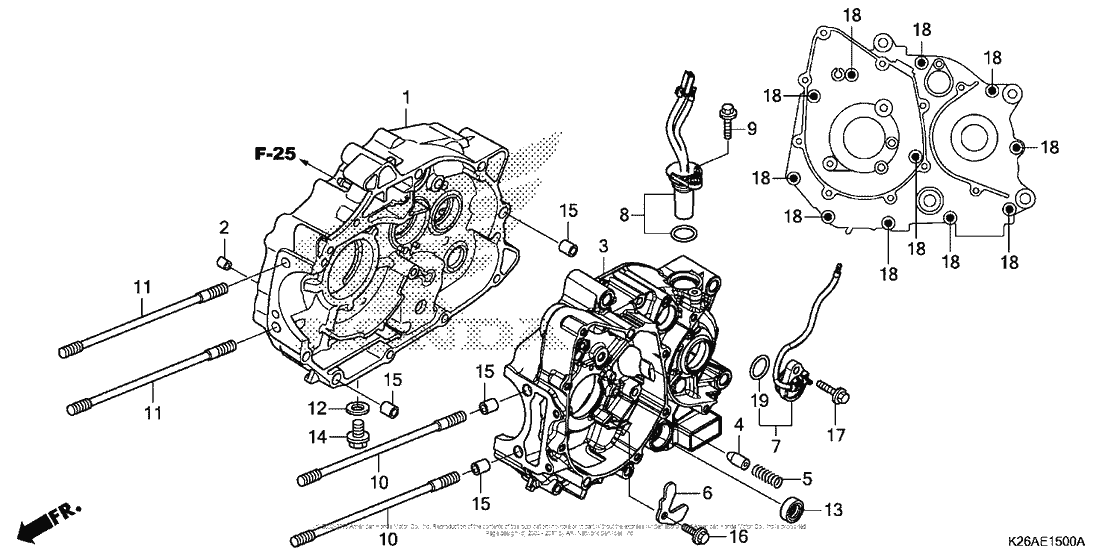

Crankcase Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-K26-900 CRANKCASE, R. |
11100-K26-900 |
US $213.71 |
||
|
2
|
2
11133-KYZ-900 Jet, oil (1.0mm) |
11133-KYZ-900 |
from US $1.50 |
||
|
3
|
3
11200-K26-900 Crankcase, l. |
11200-K26-900 |
from US $243.76 |
||
|
4
|
4
11215-KYZ-900 Plug, bearing push |
11215-KYZ-900 |
from US $3.43 |
||
|
5
|
5
11216-KYZ-900 Spring, bearing push |
11216-KYZ-900 |
from US $0.60 |
||
|
6
|
6
11218-KYZ-900 Plate, oil stopper |
11218-KYZ-900 |
from US $2.39 |
||
|
7
|
7
35759-K26-901 Contact assy. |
35759-K26-901 |
from US $14.42 |
||
|
8
|
8
37700-K26-901 Sensor assy., speed |
37700-K26-901 |
from US $50.47 |
||
|
9
|
9
90004-GHB-640 Bolt, flange (6x18) |
90004-GHB-640 |
from US $2.15 |
||
|
10
|
10
90031-KPH-900 Bolt,stud cyln |
90031-KPH-900 |
from US $4.34 |
||
|
11
|
11
90031-KYZ-900 Bolt, stud (8x196) |
90031-KYZ-900 |
from US $4.44 |
||
|
12
|
12
90407-259-000 Gasket (12.5x20) |
90407-259-000 |
from US $1.41 |
||
|
13
|
13
91208-KPH-901 Oil seal,11.6x24x |
91208-KPH-901 |
from US $2.18 |
||
|
14
|
14
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
15
|
15
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
16
|
16
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
17
|
17
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
||
|
18
|
18
96001-060-600-0 BoltFLANGE, 6X60 |
96001-060-600-0 |
from US $0.81 |
||
|
19
|
19
91301-HP2-671 O-RING (21X2.4) |
91301-HP2-671 |
from US $1.85 |
