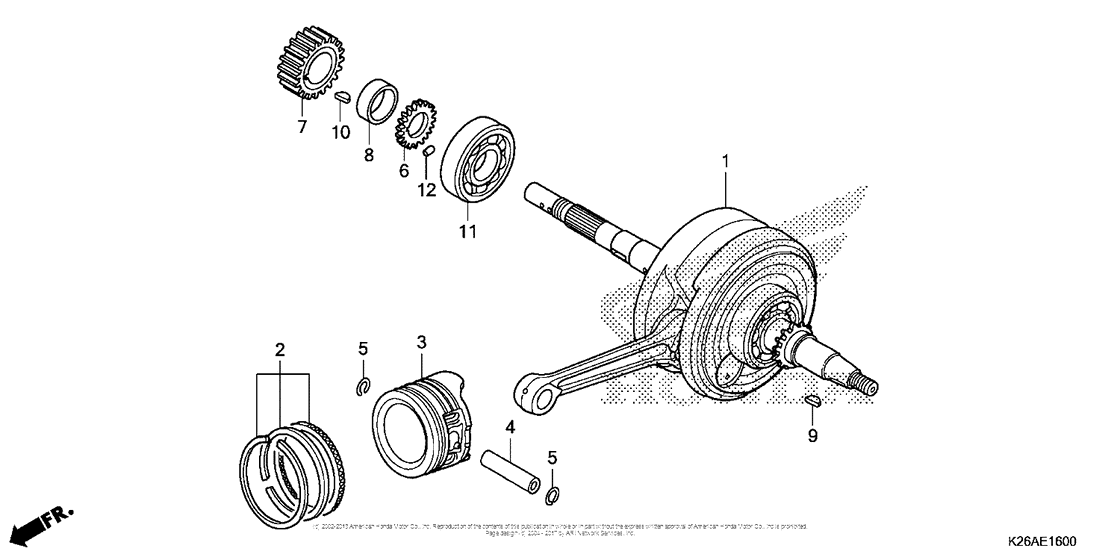

Crankshaft + Piston Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-K26-B00 CRANKSHAFT |
13000-K26-B00 |
from US $165.68 |
||
|
2
|
2
13012-KYZ-900 Ring set (std) |
13012-KYZ-900 |
from US $15.59 |
||
|
2
|
2
13022-KYZ-900 Ring set (0.25) |
13022-KYZ-900 |
US $15.59 |
||
|
2
|
2
13032-KYZ-900 Ring set (0.50) |
13032-KYZ-900 |
US $14.89 |
||
|
2
|
2
13042-KYZ-900 Ring set (0.75) |
13042-KYZ-900 |
US $15.59 |
||
|
2
|
2
13052-KYZ-900 Ring set (1.00) |
13052-KYZ-900 |
US $15.59 |
||
|
3
|
3
13101-KYZ-900 Piston |
13101-KYZ-900 |
from US $45.75 |
||
|
3
|
3
13102-KYZ-900 Piston (0.25) |
13102-KYZ-900 |
US $32.91 |
||
|
3
|
3
13103-KYZ-900 Piston (0.50) |
13103-KYZ-900 |
US $32.91 |
||
|
3
|
3
13104-KYZ-900 Piston (0.75) |
13104-KYZ-900 |
US $32.91 |
||
|
3
|
3
13105-KYZ-900 Piston (1.00) |
13105-KYZ-900 |
US $44.71 |
||
|
4
|
4
13111-GB0-910 Pin, piston |
13111-GB0-910 |
from US $6.81 |
||
|
5
|
5
13115-GN5-910 Clip,piston pin,1 |
13115-GN5-910 |
from US $1.16 |
||
|
6
|
6
15341-KPH-900 Gear,oil pump dri |
15341-KPH-900 |
from US $11.36 |
||
|
7
|
7
23121-K26-900 Gear a (20t) |
23121-K26-900 |
from US $45.56 |
||
|
7
|
7
23122-K26-900 Gear b (20t) |
23122-K26-900 |
from US $46.92 |
||
|
7
|
7
23123-K26-900 Gear c (20t) |
23123-K26-900 |
from US $45.56 |
||
|
7
|
7
23124-K26-900 Gear d (20t) |
23124-K26-900 |
from US $45.56 |
||
|
8
|
8
23125-KPG-T00 Colr, primary driven |
23125-KPG-T00 |
from US $3.21 |
||
|
9
|
9
90701-HB6-010 Key (25x14x4) |
90701-HB6-010 |
from US $2.87 |
||
|
10
|
10
90741-KGH-900 Key, woodruff (4mm) |
90741-KGH-900 |
from US $0.72 |
||
|
11
|
11
91001-KWS-901 Bearing (63/22) |
91001-KWS-901 |
from US $17.41 |
||
|
12
|
12
94303-03050 Dowel pin3X5 |
94303-03050 |
from US $0.81 |
