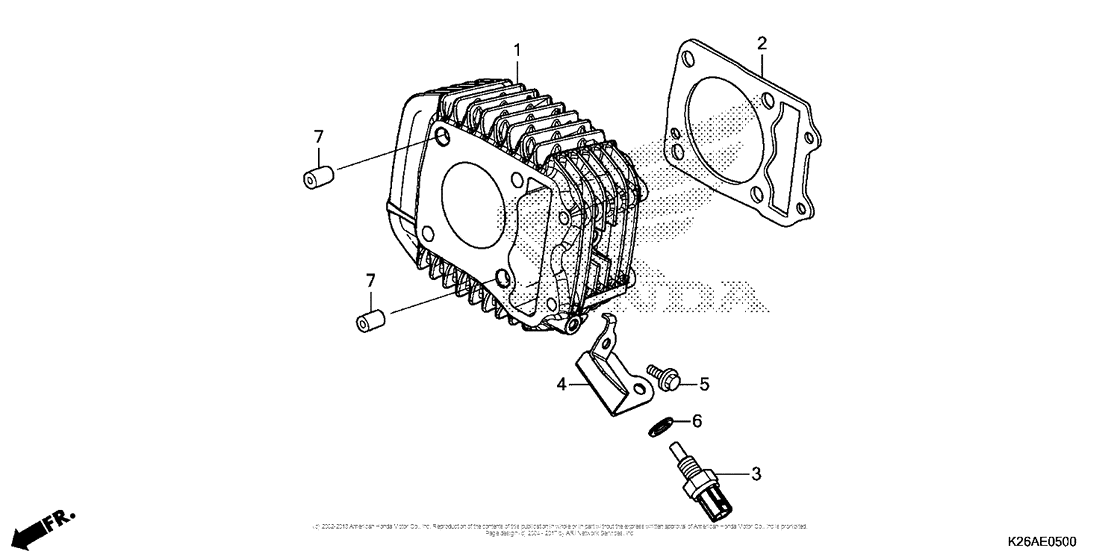

Cylinder Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-K26-900 Cylinder |
12100-K26-900 |
from US $112.17 |
||
|
2
|
2
12191-KYZ-900 Gasket, cylinder |
12191-KYZ-900 |
from US $1.68 |
||
|
3
|
3
37750-K16-A21 SENSOR ASSY. |
37750-K16-A21 |
from US $14.09 |
||
|
4
|
4
37751-K26-900 Guard |
37751-K26-900 |
from US $3.16 |
||
|
5
|
5
90005-MGZ-J00 Bolt, flange (6x14) |
90005-MGZ-J00 |
from US $1.45 |
||
|
6
|
6
90443-MB0-000 Washer (10mm) |
90443-MB0-000 |
from US $1.35 |
||
|
7
|
7
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
