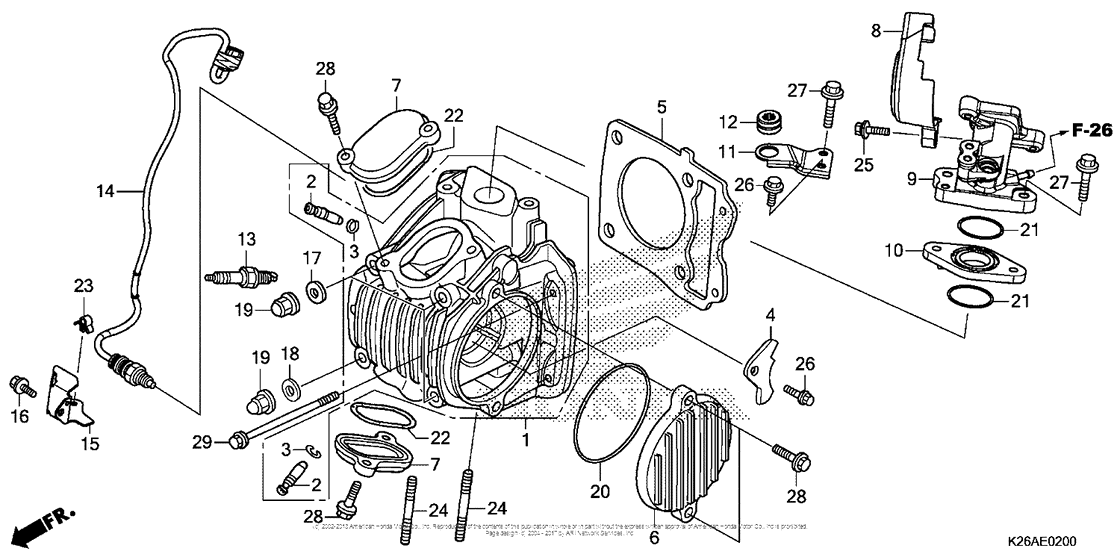

Cylinder Head Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-K26-901 New Genuine Part |
12200-K26-901 |
from US $88.35 |
||
| replacement | |||||
|
1
|
1
12200-K26-902 CYLINDER HEAD COMP |
12200-K26-902 |
from US $115.23 |
||
|
2
|
2
12204-KYZ-P00 Guide, valve (os) |
12204-KYZ-P00 |
from US $13.74 |
||
|
3
|
3
12206-KPL-900 Clip, valve guide |
12206-KPL-900 |
from US $3.63 |
||
|
4
|
4
12211-KPH-900 PlateSTOPPER |
12211-KPH-900 |
from US $1.38 |
||
|
5
|
5
12251-KYZ-901 Gasket, cyl hd |
12251-KYZ-901 |
from US $7.48 |
||
|
6
|
6
12341-K26-900 Cvr, l. cyl hd side |
12341-K26-900 |
from US $14.80 |
||
|
7
|
7
12361-K26-900 Cover, tapt adj hole |
12361-K26-900 |
from US $14.69 |
||
|
8
|
8
16157-K26-B00 COVER, THROTTLE |
16157-K26-B00 |
from US $2.04 |
||
|
9
|
9
17110-K26-910 Pipe, inlet |
17110-K26-910 |
from US $54.67 |
||
|
10
|
10
17119-K26-900 Insulator, in. pipe |
17119-K26-900 |
from US $10.23 |
||
|
11
|
11
17120-K26-900 Stay, air cleaner |
17120-K26-900 |
from US $3.93 |
||
|
12
|
12
17130-K26-900 Rubber |
17130-K26-900 |
from US $3.40 |
||
|
13
|
13
31916-KPH-901 Spark plug cpr6ea |
31916-KPH-901 |
from US $12.28 |
||
|
13
|
13
31917-KPH-901 Spark plug (NGK CPR7EA-9) |
31917-KPH-901 |
from US $7.19 |
||
|
13
|
13
31926-KPH-901 Spark-plug u20epr |
31926-KPH-901 |
from US $7.19 |
||
|
13
|
13
31927-KPH-901 Spark-plug u22epr |
31927-KPH-901 |
from US $7.19 |
||
|
14
|
14
36532-K26-B01 SENSOR, OXYGEN |
36532-K26-B01 |
from US $79.76 |
||
|
15
|
15
36535-K26-B00 GUARD, OXYGEN SENSOR |
36535-K26-B00 |
from US $4.22 |
||
|
16
|
16
90005-MGZ-J00 Bolt, flange (6x14) |
90005-MGZ-J00 |
from US $1.45 |
||
|
17
|
17
90441-286-000 Washer, sealing, 8mm |
90441-286-000 |
from US $2.59 |
||
|
18
|
18
90441-ME9-000 Washer (8mm) |
90441-ME9-000 |
from US $2.10 |
||
|
19
|
19
90443-KTM-970 Nut, cap (8mm) |
90443-KTM-970 |
from US $1 |
||
|
20
|
20
91301-PH8-005 O-ring74.5X2.5 (NOK) |
91301-PH8-005 |
from US $5.37 |
||
|
21
|
21
91304-KPH-700 O-ring29X2.4 |
91304-KPH-700 |
from US $2.50 |
||
|
22
|
22
91372-KPH-900 O-ring,tapp adj |
91372-KPH-900 |
from US $1.34 |
||
|
23
|
23
91504-SL0-003 ClipHOOD OPEN WIRE |
91504-SL0-003 |
from US $1.26 |
||
|
24
|
24
92900-08028-0E BoltSTUD, 8X28 |
92900-08028-0E |
from US $1.10 |
||
|
25
|
25
93414-050-250-8 Bolt-washer (5x25) |
93414-050-250-8 |
from US $0.59 |
||
|
26
|
26
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
27
|
27
95701-060-300-0 BoltFLANGE, 6X30 |
95701-060-300-0 |
from US $0.59 |
||
|
28
|
28
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
|
29
|
29
96001-0609000 Bolt, flange (6x90) |
96001-0609000 |
from US $1.04 |
||
