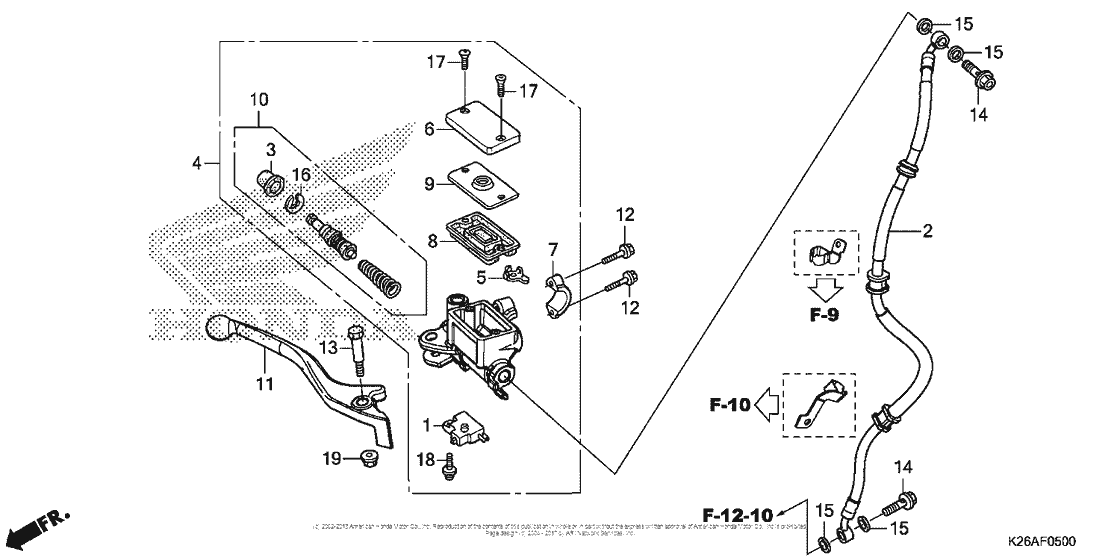

Front Brake Master Cylinder Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MGS-D31 Switch, fr. stop |
35340-MGS-D31 |
from US $14.01 |
||
|
2
|
2
45125-K26-B11 HOSE, FR. BRAKE |
45125-K26-B11 |
from US $25.26 |
||
|
3
|
3
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
4
|
4
45510-K26-305 Master cylinder sub-assy., fr. brake (coo) |
45510-K26-305 |
US $139.43 |
||
|
5
|
5
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
6
|
6
45513-HA2-006 Cap, master cylinder |
45513-HA2-006 |
from US $15.64 |
||
|
7
|
7
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
8
|
8
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
9
|
9
45521-K21-901 Plate, diaphragm |
45521-K21-901 |
from US $3.43 |
||
|
10
|
10
45530-471-831 Master cylinder set |
45530-471-831 |
from US $17.01 |
||
|
11
|
11
53175-K26-305 Lever, r. handlebar |
53175-K26-305 |
US $21.01 |
||
|
12
|
12
90013-GHB-660 BOLT, FLANGE (6X22) |
90013-GHB-660 |
from US $1.92 |
||
|
13
|
13
90114-KGH-900 Bolt,handle,lever |
90114-KGH-900 |
from US $1.41 |
||
|
14
|
14
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
15
|
15
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
16
|
16
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
17
|
17
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
18
|
18
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
