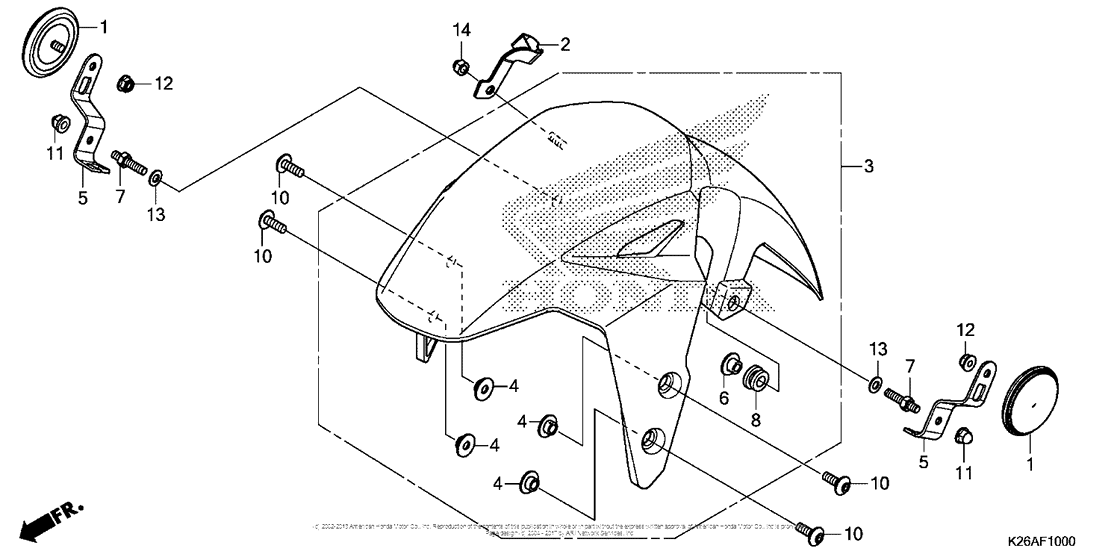

Front Fender Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-KAK-971 Reflector, fr. |
33741-KAK-971 |
from US $5.04 |
||
|
2
|
2
45157-K26-900 Clamp b, fr. |
45157-K26-900 |
from US $5.33 |
||
|
3
|
3
61100-K26-B00ZA FENDER, FR. *Y196* |
61100-K26-B00ZA |
from US $48.43 |
||
|
3
|
3
61100-K26-B00ZB FENDER, FR. *R353P* |
61100-K26-B00ZB |
from US $47.75 |
||
|
3
|
3
61100-K26-B00ZC FENDER, FR. *NH303M* |
61100-K26-B00ZC |
from US $37.37 |
||
|
3
|
3
61100-K26-B00ZD Fender, Fr. *nha87P* (Pearl Himalayas White) | Pearl Himalayas White Nha87P; |
61100-K26-B00ZD |
from US $39.22 |
||
|
4
|
4
61101-KZZ-900 Collar, fr. fender |
61101-KZZ-900 |
from US $1.46 |
||
|
5
|
5
61102-K26-950 Stay, fr. reflector |
61102-K26-950 |
US $7.62 |
||
|
6
|
6
61103-KRY-900 Collar A, fr. fender |
61103-KRY-900 |
from US $1.79 |
||
|
7
|
7
61104-K26-950 Bolt, stud (6x20) |
61104-K26-950 |
US $3.11 |
||
|
8
|
8
61105-KRY-900 Rubber, fr |
61105-KRY-900 |
from US $1.38 |
||
|
10
|
10
90130-K26-900 Screw, pan (6x18) |
90130-K26-900 |
from US $1.33 |
||
|
11
|
11
90201-428-900 Nut, cap, 6mm |
90201-428-900 |
from US $3.26 |
||
|
12
|
12
90301-KGH-901 Nut,u,6mm |
90301-KGH-901 |
from US $1.92 |
||
|
13
|
13
90501-K26-950 Washer, plain (6mm) |
90501-K26-950 |
US $3.96 |
||
|
14
|
14
94021-060-700-S NutCAP, 6MM |
94021-060-700-S |
from US $0.59 |
