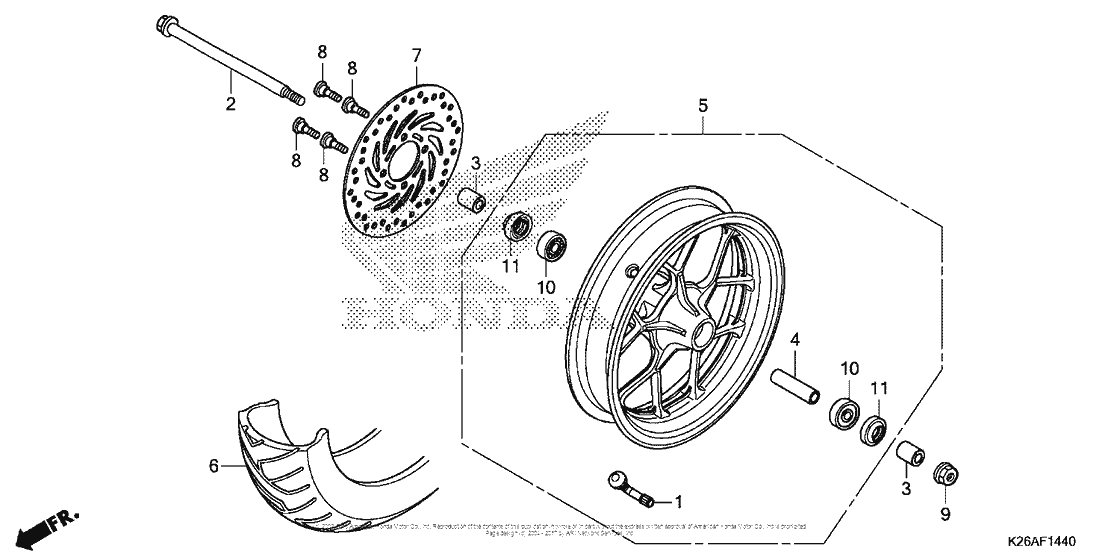

Front Wheel Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42753-KJ9-003 Valve, rim |
42753-KJ9-003 |
from US $7.49 |
||
|
2
|
2
44301-K26-900 Axle, fr. wheel |
44301-K26-900 |
from US $10.39 |
||
|
3
|
3
44311-K26-900 Collar, r. fr. |
44311-K26-900 |
from US $7.70 |
||
|
4
|
4
44620-K26-900 Collar, fr |
44620-K26-900 |
from US $6.66 |
||
|
5
|
5
44650-K26-306ZA WHEEL SUB *NH303M* |
44650-K26-306ZA |
US $226.90 |
||
|
6
|
6
44711-K26-B01 TIRE (120/70-12 51L) |
44711-K26-B01 |
US $81.33 |
||
|
6
|
6
44711-K26-B02 TIRE (120/70-12 51L) |
44711-K26-B02 |
US $139.77 |
||
|
7
|
7
45251-KWB-602 Disk, fr. brake |
45251-KWB-602 |
from US $80.89 |
||
|
8
|
8
90105-KGH-900 Bolt,brk disk 8x2 |
90105-KGH-900 |
from US $2.81 |
||
|
9
|
9
90306-KGH-901 Nut,u,12mm |
90306-KGH-901 |
from US $3.55 |
||
|
10
|
10
91053-K03-H02 BEARING (6301U L) |
91053-K03-H02 |
from US $9.33 |
||
|
11
|
11
91252-KGH-902 Dust seal23X37X7 (NOK) |
91252-KGH-902 |
from US $1.85 |
