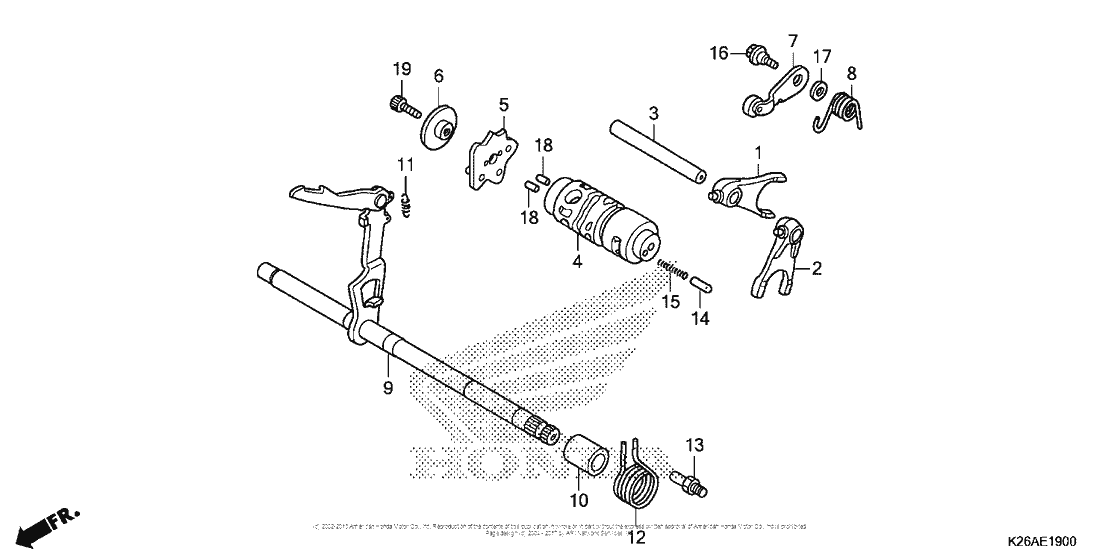

Gearshift Drum Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-KPH-900 Fork r,gear shift |
24211-KPH-900 |
from US $17.95 |
||
|
2
|
2
24212-KPH-900 Fork l,gear shift |
24212-KPH-900 |
from US $17.95 |
||
|
3
|
3
24241-KPH-900 Shaft,gear shift |
24241-KPH-900 |
from US $5.37 |
||
|
4
|
4
24301-KPG-T00 Drum, gearshift |
24301-KPG-T00 |
from US $36.24 |
||
|
5
|
5
24410-K26-900 Plate |
24410-K26-900 |
from US $12.58 |
||
|
6
|
6
24421-KPH-900 Holder,dram stopp |
24421-KPH-900 |
from US $2.44 |
||
|
7
|
7
24430-KPH-901 Stopper compGEARSHIFT DRUM |
24430-KPH-901 |
from US $8.73 |
||
|
8
|
8
24435-K26-900 Spring |
24435-K26-900 |
from US $1 |
||
|
9
|
9
24610-K26-900 Spindle, gearshift |
24610-K26-900 |
from US $29.38 |
||
|
10
|
10
24639-KPG-T00 Collar (12.2mm) |
24639-KPG-T00 |
from US $3.09 |
||
|
11
|
11
24641-KPH-900 Spg,gear shift ar |
24641-KPH-900 |
from US $0.60 |
||
|
12
|
12
24651-K26-900 Spring |
24651-K26-900 |
from US $7.10 |
||
|
13
|
13
24652-KPH-900 Pin,shift return |
24652-KPH-900 |
from US $4.88 |
||
|
14
|
14
35751-K26-920 Cap |
35751-K26-920 |
from US $2.52 |
||
|
15
|
15
35752-KPH-900 Spring,contact ch |
35752-KPH-900 |
from US $0.65 |
||
|
16
|
16
90022-MG8-000 Pivot |
90022-MG8-000 |
from US $2.44 |
||
|
17
|
17
90435-HB3-000 Washer (6.1mm) |
90435-HB3-000 |
from US $2.22 |
||
|
18
|
18
9622030085 Roller (3x8.5) |
9622030085 |
from US $0.22 |
||
|
19
|
19
96600-060-160-0 BoltSOCKET, 6X16 |
96600-060-160-0 |
from US $0.65 |
