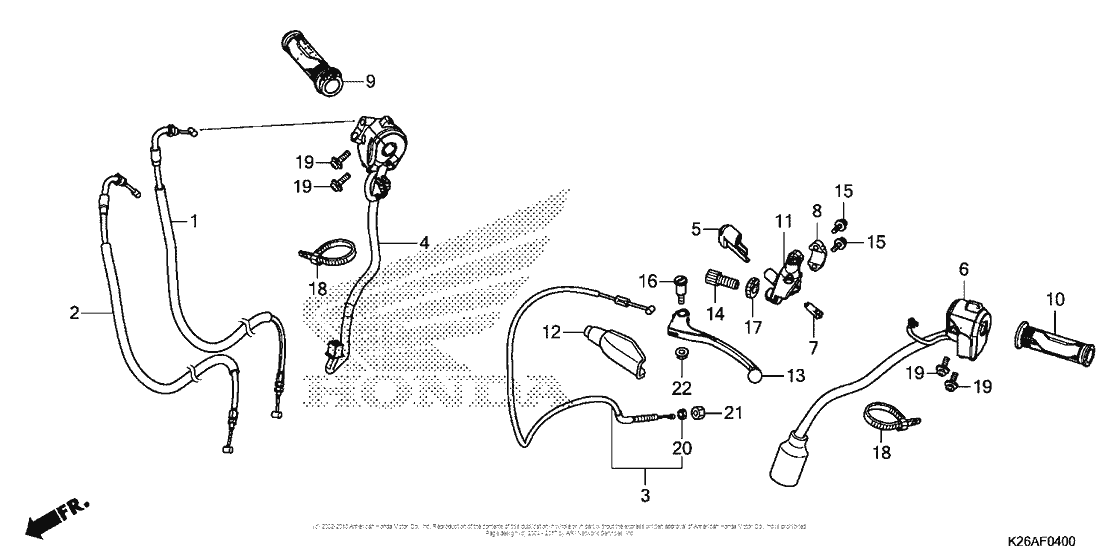

Handle Lever + Switch + Cable Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-K26-B01 Cable A, Throttle |
17910-K26-B01 |
from US $10.35 |
||
|
2
|
2
17920-K26-B01 Cable B, Throttle |
17920-K26-B01 |
from US $10.61 |
||
|
3
|
3
22870-K26-B00 Cable, clutch |
22870-K26-B00 |
from US $13.12 |
||
|
4
|
4
35130-K26-B01 SWITCH, ENGINE STOP |
35130-K26-B01 |
from US $33.13 |
||
|
5
|
5
35152-KRY-970 Cover, clutch switch |
35152-KRY-970 |
from US $6.07 |
||
|
6
|
6
35200-K26-B11 SWITCH, TURN SIGNAL |
35200-K26-B11 |
from US $52.85 |
||
|
7
|
7
35330-KYJ-901 Switch, fr. lever |
35330-KYJ-901 |
from US $9.69 |
||
|
8
|
8
45517-KCW-870 Holder,m/c |
45517-KCW-870 |
from US $11.84 |
||
|
9
|
9
53140-KYJ-305 Grip, throttle |
53140-KYJ-305 |
US $12.89 |
||
|
10
|
10
53166-KYJ-305 Grip, l. handle |
53166-KYJ-305 |
US $9.40 |
||
|
11
|
11
53172-KYJ-900 Brkt, handle lever |
53172-KYJ-900 |
from US $17.71 |
||
|
12
|
12
53172-402-700 Cover, l |
53172-402-700 |
from US $10.56 |
||
|
13
|
13
53178-KV0-305 Lever, l. handle |
53178-KV0-305 |
from US $20.40 |
||
| replacement | |||||
|
13
|
13
53178-KV0-000 Lever, l. handle |
53178-KV0-000 |
from US $13.25 |
||
|
14
|
14
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
15
|
15
90013-GHB-660 BOLT, FLANGE (6X22) |
90013-GHB-660 |
from US $1.92 |
||
|
16
|
16
90113-438-000 Bolt, l |
90113-438-000 |
from US $3.87 |
||
|
17
|
17
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
18
|
18
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $2.89 |
||
|
19
|
19
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
20
|
20
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
21
|
21
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
