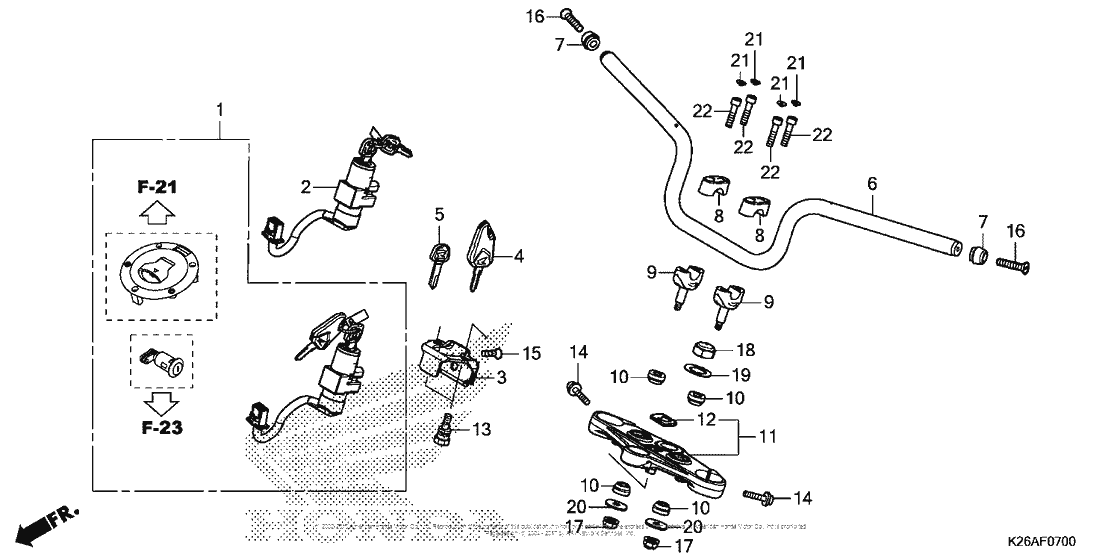

Handlebar Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-K26-B01 KEY SET |
35010-K26-B01 |
from US $165.82 |
||
| replacement | |||||
|
1
|
1
35010-K26-B02 New Genuine Part |
35010-K26-B02 |
from US $165.82 |
||
|
1
|
1
35010-K26-B10 LOCK SET |
35010-K26-B10 |
US $165.82 |
||
| replacement | |||||
|
1
|
1
35010-K26-B02 New Genuine Part |
35010-K26-B02 |
from US $165.82 |
||
|
2
|
2
35100-K26-B11 SWITCH ASSY. |
35100-K26-B11 |
US $54.83 |
||
|
3
|
3
35105-K26-900 Stay |
35105-K26-900 |
from US $8.44 |
||
|
4
|
4
35121-K26-B00 FOLDING KEY, BLANK |
35121-K26-B00 |
from US $14.14 |
||
|
5
|
5
35122-K26-B00 KEY, BLANK |
35122-K26-B00 |
from US $10.21 |
||
|
6
|
6
53100-K26-306 HANDLEBAR |
53100-K26-306 |
US $27.17 |
||
|
7
|
7
53102-K26-900 Weight a, handle |
53102-K26-900 |
from US $4.34 |
||
|
8
|
8
53131-K20-900ZC Holder *nh105* |
53131-K20-900ZC |
from US $10.22 |
||
|
9
|
9
53132-K26-900 Hldr, handle (lower) |
53132-K26-900 |
from US $15.91 |
||
|
10
|
10
53133-K26-900 Rub, handle cushion |
53133-K26-900 |
from US $2.21 |
||
|
11
|
11
53300-K26-900 Bridge, fork top |
53300-K26-900 |
from US $88.88 |
||
|
12
|
12
86150-KPG-901 Emblem, product |
86150-KPG-901 |
from US $2.07 |
||
|
13
|
13
90107-K20-T20 BOLT, BREAK OFF |
90107-K20-T20 |
from US $2.21 |
||
|
14
|
14
90160-K26-900 Bolt (8x32) |
90160-K26-900 |
from US $1.41 |
||
|
15
|
15
90164-028-000 Screw (6x12) |
90164-028-000 |
from US $1.92 |
||
|
16
|
16
90191-KWB-600 Screw,oval 6x40 |
90191-KWB-600 |
from US $1.09 |
||
|
17
|
17
90304-KPG-901 Nut, u (8mm) |
90304-KPG-901 |
from US $1.38 |
||
|
18
|
18
90305-KGH-900 NutSTEERING STEM |
90305-KGH-900 |
from US $5.48 |
||
|
19
|
19
90503-KGA-900 Washer |
90503-KGA-900 |
from US $2.18 |
||
|
20
|
20
90535-K26-900 Washer (lower) |
90535-K26-900 |
from US $3.81 |
||
|
21
|
21
91456-371-770 Cap, socket bolt |
91456-371-770 |
from US $3.33 |
||
|
22
|
22
96700-080-350-0 Bolt,socket,8x35 |
96700-080-350-0 |
from US $0.81 |
||
