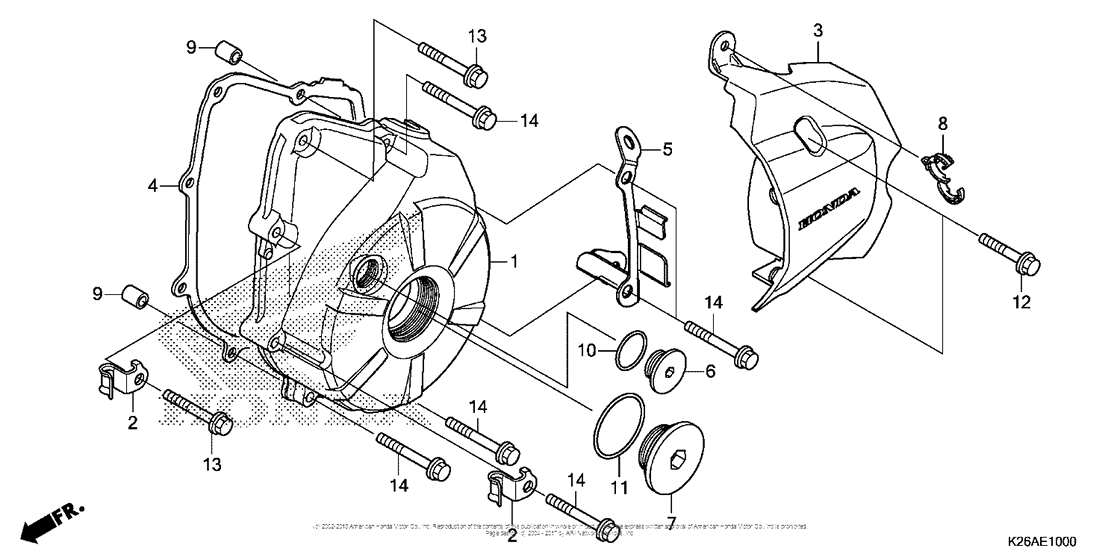

Left Crankcase Cover Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KYZ-T00 Cover, l. crankcase |
11341-KYZ-T00 |
from US $53.30 |
||
|
2
|
2
11346-KTR-940 Clamper aOIL TEMP SENSOR CORD |
11346-KTR-940 |
from US $1.22 |
||
|
3
|
3
11360-K26-B00 COVER, L. RR. |
11360-K26-B00 |
from US $10.56 |
||
|
4
|
4
11395-KPH-901 Gasket, l |
11395-KPH-901 |
from US $1.62 |
||
|
5
|
5
35711-K26-900 Stay |
35711-K26-900 |
from US $13.02 |
||
|
6
|
6
90084-KWA-930 Cap (14mm) |
90084-KWA-930 |
from US $9.77 |
||
|
7
|
7
90087-KTR-A00 Cap (30mm) |
90087-KTR-A00 |
from US $11.69 |
||
|
8
|
8
90684-ZA0-601 Clip, harness |
90684-ZA0-601 |
from US $1.64 |
||
|
9
|
9
90702-KFM-900 Pin, dowel (8x12) |
90702-KFM-900 |
from US $0.88 |
||
|
10
|
10
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
11
|
11
91356-KWV-000 ORING 30MM |
91356-KWV-000 |
from US $1.73 |
||
|
12
|
12
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
13
|
13
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
|
14
|
14
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
