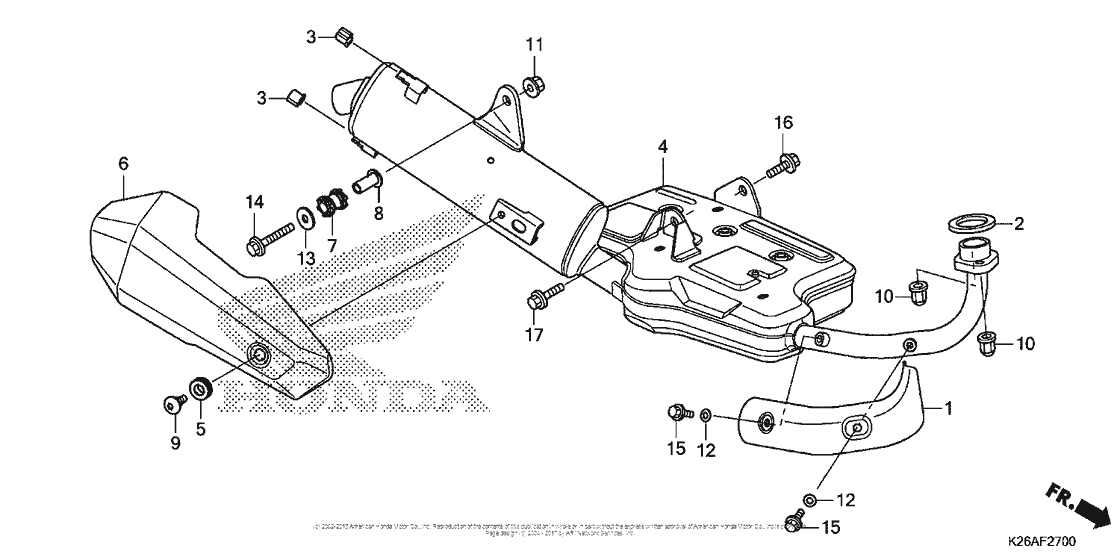

Muffler Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18240-K26-306 COVER, EX. PIPE |
18240-K26-306 |
US $15.49 |
||
|
2
|
2
18291-GE2-920 Gasket,ex.pipe |
18291-GE2-920 |
from US $6.36 |
||
|
3
|
3
18293-MCA-A20 Rubber |
18293-MCA-A20 |
from US $1.12 |
||
|
4
|
4
18300-K26-306 MUFFLER, EX. |
18300-K26-306 |
US $479.20 |
||
|
5
|
5
18345-MBT-610 Rubber |
18345-MBT-610 |
from US $2.52 |
||
|
6
|
6
18355-K26-B00 COVER, MUFFLER |
18355-K26-B00 |
from US $75.55 |
||
|
7
|
7
18421-K26-B00 RUBBER, MUFF MT |
18421-K26-B00 |
from US $0.80 |
||
|
8
|
8
18422-K26-900 Collar, muff mt |
18422-K26-900 |
from US $4.59 |
||
|
9
|
9
90113-KTA-920 Screw, pan (6x12) |
90113-KTA-920 |
from US $1.92 |
||
|
10
|
10
90304-KPH-700 Nut,hex cap 8mm |
90304-KPH-700 |
from US $2.33 |
||
|
11
|
11
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
12
|
12
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
||
|
13
|
13
9410308200 Washer, plain, 8mm |
9410308200 |
from US $0.52 |
||
|
14
|
14
95701-0804502 Bolt, flange, 8x45 |
95701-0804502 |
from US $1.04 |
||
|
15
|
15
96001-0600802 Bolt, flange (6x8) |
96001-0600802 |
from US $0.74 |
||
|
16
|
16
96300-080-160-4 Bolt, flange (8x16) |
96300-080-160-4 |
from US $0.74 |
||
|
17
|
17
96300-080-250-4 Bolt, flange (8x25) |
96300-080-250-4 |
from US $0.81 |
