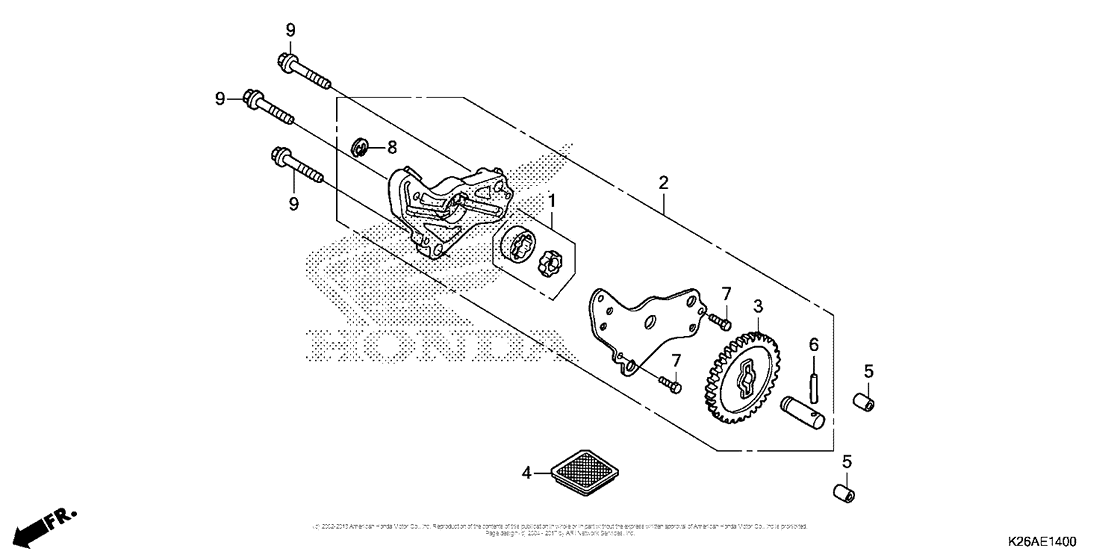

Oil Pump Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15021-GF6-000 Rotor Set, Oil Pump |
15021-GF6-000 |
from US $13.17 |
||
|
2
|
2
15100-KTM-D20 Pump assy.OIL |
15100-KTM-D20 |
from US $23.90 |
||
|
3
|
3
15133-KTM-D20 GearOIL PUMP DRIVEN (30T) |
15133-KTM-D20 |
from US $19.58 |
||
|
4
|
4
15421-KSP-910 Screen, oil filter |
15421-KSP-910 |
from US $5.76 |
||
|
5
|
5
90702-KFM-900 Pin, dowel (8x12) |
90702-KFM-900 |
from US $0.88 |
||
|
6
|
6
91105-KTM-970 Roller4X23.8 |
91105-KTM-970 |
from US $0.75 |
||
|
6
|
6
96220-40238 Roller4X23.8 |
96220-40238 |
from US $0.37 |
||
|
7
|
7
93301-050-120-J Bolt,hex.,5x12 |
93301-050-120-J |
from US $0.37 |
||
|
8
|
8
94540-06018 E-ring6MM |
94540-06018 |
from US $1.41 |
||
|
9
|
9
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
