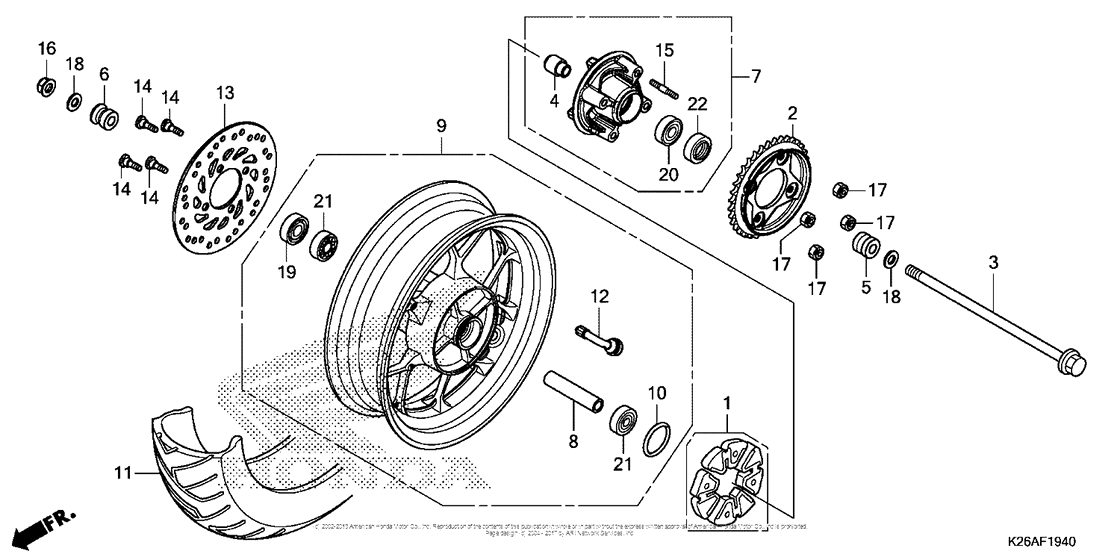

Rear Wheel Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06410-KWB-600 DAMPER SET WHEEL |
06410-KWB-600 |
from US $12.04 |
||
|
2
|
2
41200-K26-901 Sprocket (34t) |
41200-K26-901 |
from US $43.11 |
||
|
3
|
3
42301-K26-900 Axle, rr. wheel |
42301-K26-900 |
from US $9.69 |
||
|
4
|
4
42303-KWB-600 New Genuine Part |
42303-KWB-600 |
from US $4.51 |
||
|
5
|
5
42311-K26-900 Collar, l. rr. |
42311-K26-900 |
from US $9.18 |
||
|
6
|
6
42312-K26-900 Collar, r. rr. |
42312-K26-900 |
from US $9.77 |
||
|
7
|
7
42615-K26-B10 FLANGE SUB-ASSY. |
42615-K26-B10 |
from US $58.55 |
||
|
8
|
8
42620-K26-900 Collar, rr. |
42620-K26-900 |
from US $7.99 |
||
|
9
|
9
42650-K26-306ZA WHEEL SUB *NH303M* |
42650-K26-306ZA |
US $247.18 |
||
|
10
|
10
42653-001-004 O-ring (40.5x3) |
42653-001-004 |
from US $2.89 |
||
|
11
|
11
42711-K26-B01 TIRE (130/70-12 56L) |
42711-K26-B01 |
US $87.52 |
||
|
11
|
11
42711-K26-B02 TIRE (130/70-12 56L) |
42711-K26-B02 |
US $87.52 |
||
|
12
|
12
42753-KJ9-003 Valve, rim |
42753-KJ9-003 |
from US $7.49 |
||
|
13
|
13
43251-K26-900 Disk, rr. brake |
43251-K26-900 |
from US $45 |
||
|
14
|
14
90105-KGH-900 Bolt,brk disk 8x2 |
90105-KGH-900 |
from US $2.81 |
||
|
15
|
15
90128-KWB-600 New Genuine Part |
90128-KWB-600 |
from US $0.97 |
||
|
16
|
16
90306-KGH-901 Nut,u,12mm |
90306-KGH-901 |
from US $3.55 |
||
|
17
|
17
90309-KPH-971 Nut,u 8mm |
90309-KPH-971 |
from US $2.28 |
||
|
18
|
18
90504-K26-900 Washer, rr. axle |
90504-K26-900 |
from US $3.48 |
||
|
19
|
19
90753-051-003 Oil seal (26x37x6) |
90753-051-003 |
from US $6.07 |
||
|
20
|
20
91051-K35-V03 New Genuine Part |
91051-K35-V03 |
from US $12.14 |
||
|
21
|
21
91053-K03-H02 BEARING (6301U L) |
91053-K03-H02 |
from US $9.33 |
||
|
22
|
22
91251-KGH-902 Dust seal,27x40x4 |
91251-KGH-902 |
from US $1.39 |
