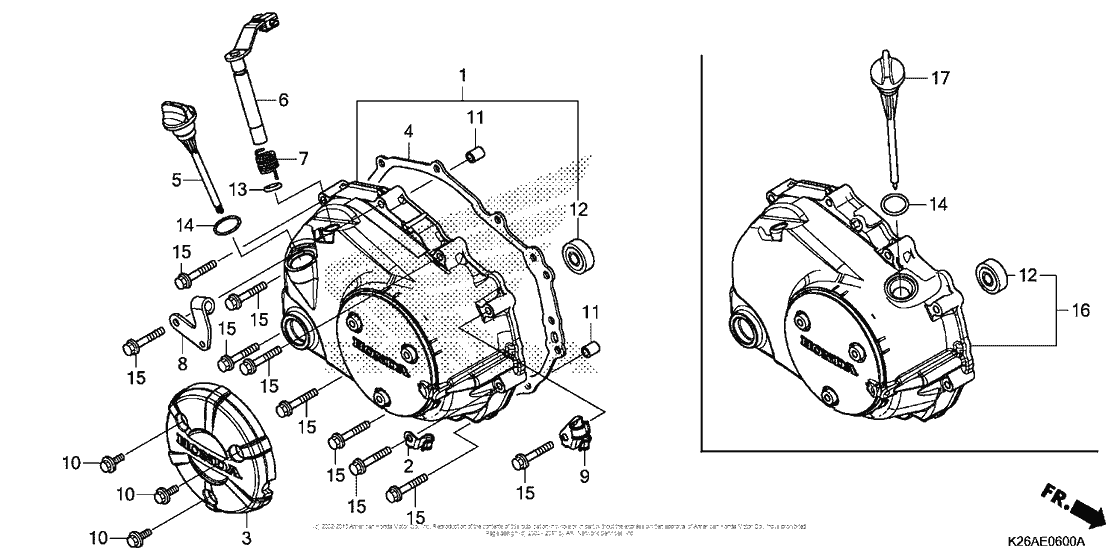

Right Crankcase Cover Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-K26-900 Cover, r. crankcase |
11330-K26-900 |
from US $82.65 |
||
|
2
|
2
11346-KTR-940 Clamper aOIL TEMP SENSOR CORD |
11346-KTR-940 |
from US $1.22 |
||
|
3
|
3
11370-K26-B00 PROTECTOR, R. COVER |
11370-K26-B00 |
from US $10.34 |
||
|
4
|
4
11394-KYZ-900 Gasket, r |
11394-KYZ-900 |
from US $9.78 |
||
|
5
|
5
15651-K26-900 Dipstick, oil |
15651-K26-900 |
from US $6.49 |
||
|
6
|
6
22810-K26-900 Lever, clutch |
22810-K26-900 |
from US $25.98 |
||
|
7
|
7
22815-166-000 Spg.,clutch lever |
22815-166-000 |
from US $3.33 |
||
|
8
|
8
22821-K26-900 Receiver |
22821-K26-900 |
from US $8.08 |
||
|
9
|
9
32906-KWB-600 Clip |
32906-KWB-600 |
from US $1.26 |
||
|
10
|
10
90005-K26-B00 BOLT, FLANGE (6X12) |
90005-K26-B00 |
from US $1.45 |
||
|
11
|
11
90702-KFM-900 Pin, dowel (8x12) |
90702-KFM-900 |
from US $0.88 |
||
|
12
|
12
91007-KPH-901 Brg,ball radial 6 |
91007-KPH-901 |
from US $9.18 |
||
|
13
|
13
91305-K26-900 O-ring (8.8x1.9) |
91305-K26-900 |
from US $0.80 |
||
|
14
|
14
91307-KRM-840 O-ring (18x3) |
91307-KRM-840 |
from US $0.59 |
||
|
15
|
15
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
16
|
16
11330-K26-C00 Cover, R. Crankcase | Use From Engine Sn 2312359 |
11330-K26-C00 |
from US $70.23 |
||
|
17
|
17
15651-K26-C00 Dipstick, Oil | Use From Engine Sn 2312359 |
15651-K26-C00 |
from US $7.50 |
