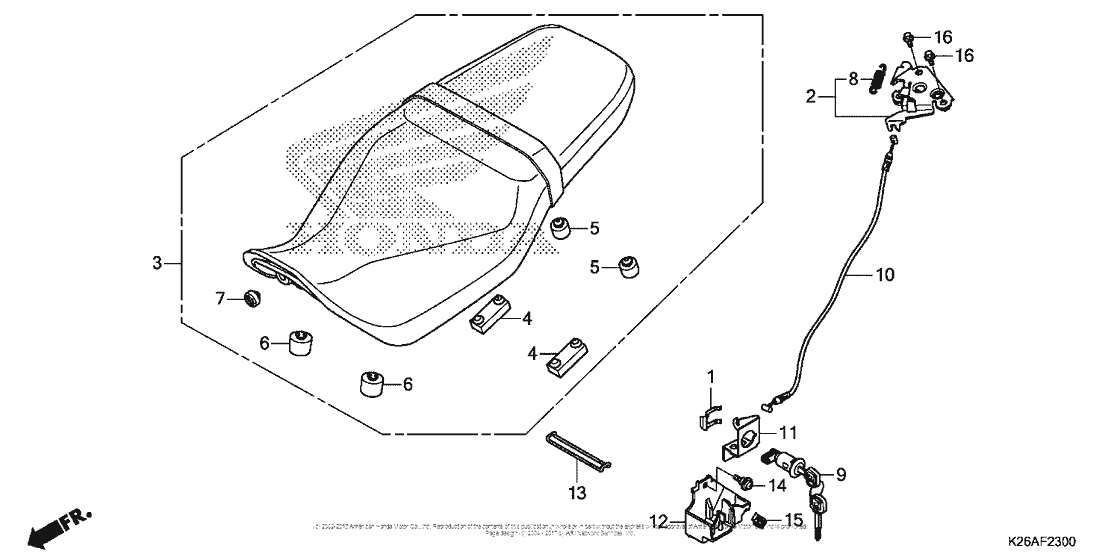

Seat Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75581-673-000 SpringLOCK KEY SETTING |
75581-673-000 |
from US $2.60 |
||
|
2
|
2
77160-K26-B00 BRACKET, SEAT LOCK |
77160-K26-B00 |
from US $10.23 |
||
|
3
|
3
77200-K26-B00ZA SEAT, DOUBLE (TYPE1) |
77200-K26-B00ZA |
from US $106.17 |
||
|
4
|
4
77205-MFE-670 Rubber, seat setting |
77205-MFE-670 |
from US $6.07 |
||
|
5
|
5
77206-KPK-900 Rubber, seat cushion |
77206-KPK-900 |
from US $1.92 |
||
|
6
|
6
77206-KPP-T00 Rubber, seat cushion |
77206-KPP-T00 |
from US $4.95 |
||
|
7
|
7
77215-KW7-900 Rubber c,seat set |
77215-KW7-900 |
from US $3.18 |
||
|
8
|
8
77234-KRJ-900 SPRING, SEAT LOCK |
77234-KRJ-900 |
from US $2.66 |
||
|
9
|
9
77239-KVB-900 Key, seat lock |
77239-KVB-900 |
from US $18.50 |
||
|
10
|
10
77240-K26-B00 CABLE, SEAT LOCK |
77240-K26-B00 |
from US $3.76 |
||
|
11
|
11
77582-K26-900 Stay |
77582-K26-900 |
from US $5.30 |
||
|
12
|
12
83556-K26-B00 COVER, SEAT LOCK |
83556-K26-B00 |
from US $8.59 |
||
|
13
|
13
89012-KZL-930 Band, tool |
89012-KZL-930 |
from US $1.65 |
||
|
14
|
14
90117-KVG-A20 New Genuine Part |
90117-KVG-A20 |
from US $1.26 |
||
|
15
|
15
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
16
|
16
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
