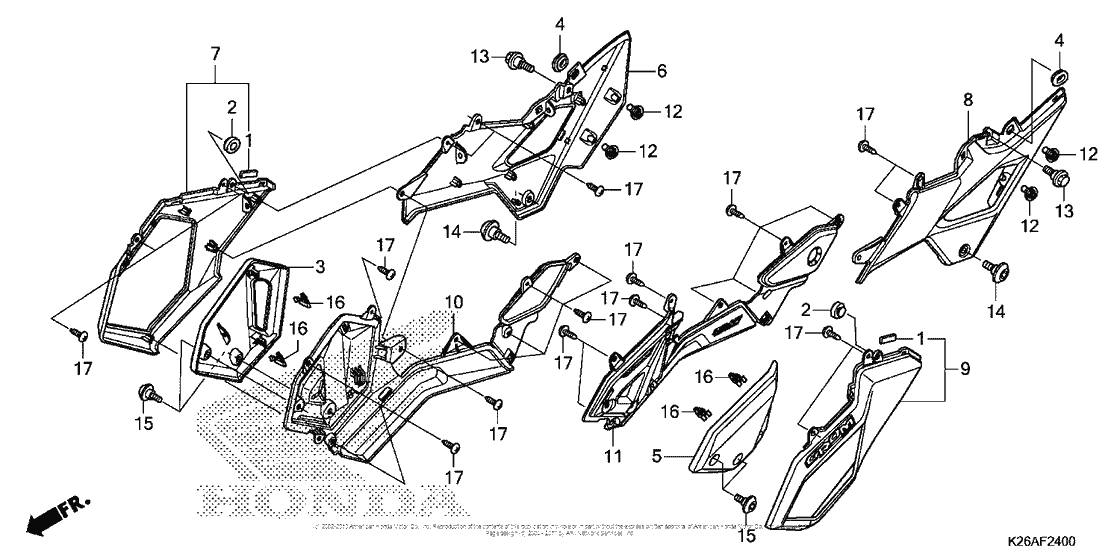

Side Cover Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81257-KWC-900 RUBBER, PROTECTOR |
81257-KWC-900 |
from US $1.50 |
||
|
2
|
2
83512-KZZ-900 Rubber |
83512-KZZ-900 |
from US $1.92 |
||
|
3
|
3
83545-K26-B00ZA GARNISH, R. *Y196* |
83545-K26-B00ZA |
from US $29.78 |
||
|
3
|
3
83545-K26-B00ZB GARNISH, R. *R353P* |
83545-K26-B00ZB |
from US $23.90 |
||
|
3
|
3
83545-K26-B00ZC GARNISH, R. *NH303M* |
83545-K26-B00ZC |
from US $19.86 |
||
|
3
|
3
83545-K26-B00ZD GARNISH, R. *NHA87P* |
83545-K26-B00ZD |
from US $20.66 |
||
|
4
|
4
83551-GE2-000 Grommet, a/clnr hsg |
83551-GE2-000 |
from US $0.14 |
||
|
5
|
5
83555-K26-B00ZA GARNISH, L. *Y196* |
83555-K26-B00ZA |
from US $29.78 |
||
|
5
|
5
83555-K26-B00ZB GARNISH, L. *R353P* |
83555-K26-B00ZB |
from US $23.90 |
||
|
5
|
5
83555-K26-B00ZC GARNISH, L. *NH303M* |
83555-K26-B00ZC |
from US $19.86 |
||
|
5
|
5
83555-K26-B00ZD GARNISH, L. *NHA87P* |
83555-K26-B00ZD |
from US $20.66 |
||
|
6
|
6
83580-K26-B00ZA CVR, R. SI *NHB81M* |
83580-K26-B00ZA |
from US $39.68 |
||
|
7
|
7
83585-K26-B20ZA CVR, R. SI *NHB81M* |
83585-K26-B20ZA |
from US $29.31 |
||
|
8
|
8
83590-K26-B00ZA CVR, L. SI *NHB81M* |
83590-K26-B00ZA |
from US $39.68 |
||
|
9
|
9
83595-K26-B20ZA CVR, L. SI *NHB81M* |
83595-K26-B20ZA |
from US $29.31 |
||
|
10
|
10
83680-K26-B00 COVER, R. SI (LOWER) |
83680-K26-B00 |
from US $10.12 |
||
|
11
|
11
83690-K26-B00 COVER, L. SI (LOWER) |
83690-K26-B00 |
from US $10.12 |
||
|
12
|
12
90104-K26-B00 SCREW |
90104-K26-B00 |
from US $1.38 |
||
|
13
|
13
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
14
|
14
90133-KPP-T00 Screw, pan (6x14) |
90133-KPP-T00 |
from US $1.89 |
||
|
15
|
15
90134-KPP-T00 Screw, pan (5x14) |
90134-KPP-T00 |
from US $0.49 |
||
|
16
|
16
90666-K59-A11 CLIP, SNAP FITTING |
90666-K59-A11 |
from US $1.63 |
||
|
17
|
17
93903-24210 ScrewTAPPING, 4X10 |
93903-24210 |
from US $0.37 |
