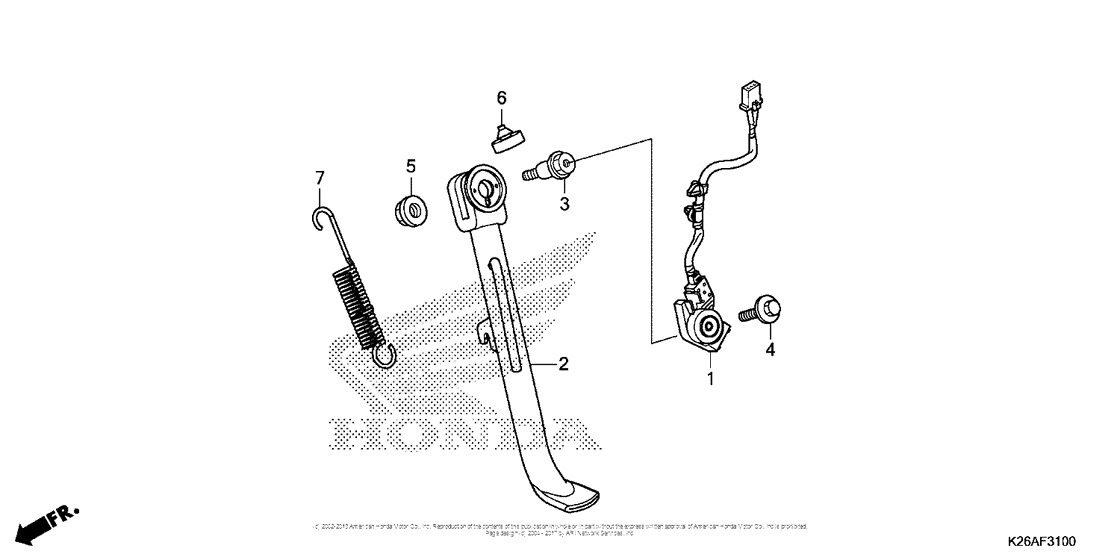

Stand Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35700-K26-B11 SWITCH, SIDE STAND |
35700-K26-B11 |
from US $43.79 |
||
|
2
|
2
50530-K26-306 BAR, SIDE STAND |
50530-K26-306 |
US $19.28 |
||
|
3
|
3
90108-KZL-860 Bolt |
90108-KZL-860 |
from US $3.11 |
||
|
4
|
4
90147-KVB-900 BOLT, SPECIAL (6X16) |
90147-KVB-900 |
from US $0.94 |
||
|
5
|
5
90203-KVB-900 Nut,side stand |
90203-KVB-900 |
from US $2.38 |
||
|
6
|
6
9501162000 Rubber b, stand stopper |
9501162000 |
from US $0.74 |
||
|
7
|
7
9501472102 Spring a, side stand |
9501472102 |
from US $1.08 |
