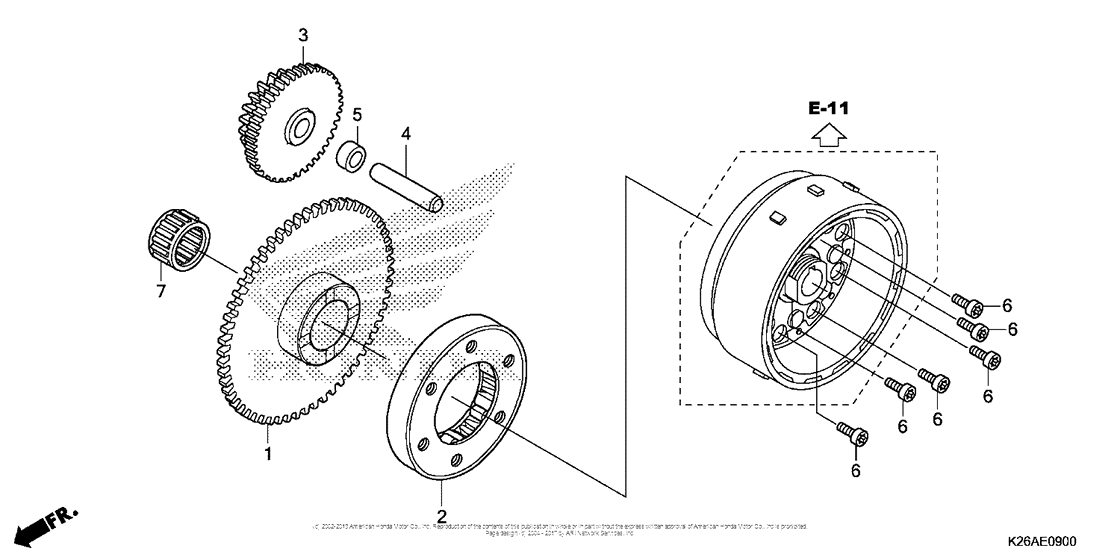

Starting Clutch Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-K26-900 Gear (57t) |
28110-K26-900 |
from US $44.97 |
||
|
2
|
2
28120-KWB-921 CLUTCH ASSY ONE WAY |
28120-KWB-921 |
from US $54.33 |
||
|
3
|
3
28131-KYZ-901 Gear (17t/55t) |
28131-KYZ-901 |
from US $24.67 |
||
|
4
|
4
28132-KPH-900 Shaft,reduction g |
28132-KPH-900 |
from US $1.21 |
||
|
5
|
5
28133-KPH-900 Collar,starter re |
28133-KPH-900 |
from US $0.80 |
||
|
6
|
6
90085-413-781 Bolt, socket (6mm) |
90085-413-781 |
from US $4 |
||
|
7
|
7
91011-KWW-741 Bearing (21x27x18) |
91011-KWW-741 |
from US $4.85 |
