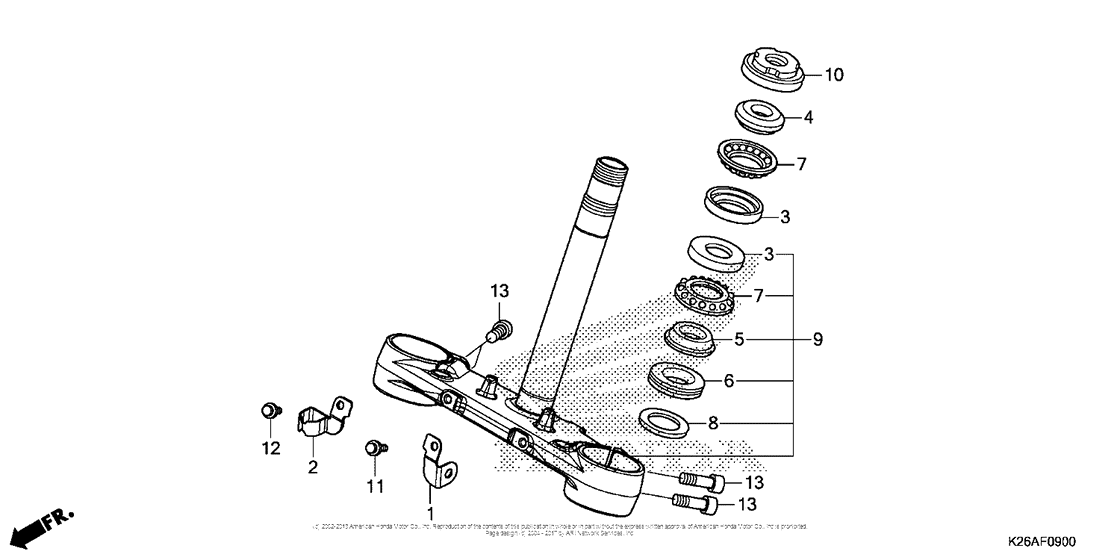

Steering Stem Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38112-K26-900 Stay, horn wire |
38112-K26-900 |
from US $2.50 |
||
|
2
|
2
45156-K26-900 Clamp a, fr. |
45156-K26-900 |
from US $3.16 |
||
|
3
|
3
50301-KTR-900 RaceSTEERING TOP BALL |
50301-KTR-900 |
from US $9.44 |
||
|
4
|
4
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
5
|
5
53212-200-305 Race, steering cone |
53212-200-305 |
from US $24.14 |
||
|
6
|
6
53214-200-000 Dust seal |
53214-200-000 |
from US $2.14 |
||
|
7
|
7
53215-KTR-900 Ball, steering steel |
53215-KTR-900 |
from US $10.66 |
||
|
8
|
8
53215-200-000 Washer |
53215-200-000 |
from US $1.82 |
||
|
9
|
9
53219-K26-900 Stem sub-assy., strg |
53219-K26-900 |
from US $192.34 |
||
|
10
|
10
53220-KE8-010 Thread |
53220-KE8-010 |
from US $20.40 |
||
|
11
|
11
90013-GHB-600 BOLT, FLANGE (6X10) |
90013-GHB-600 |
from US $2 |
||
|
12
|
12
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
13
|
13
96600-0802500 Bolt, socket (8x25) |
96600-0802500 |
from US $0.81 |
