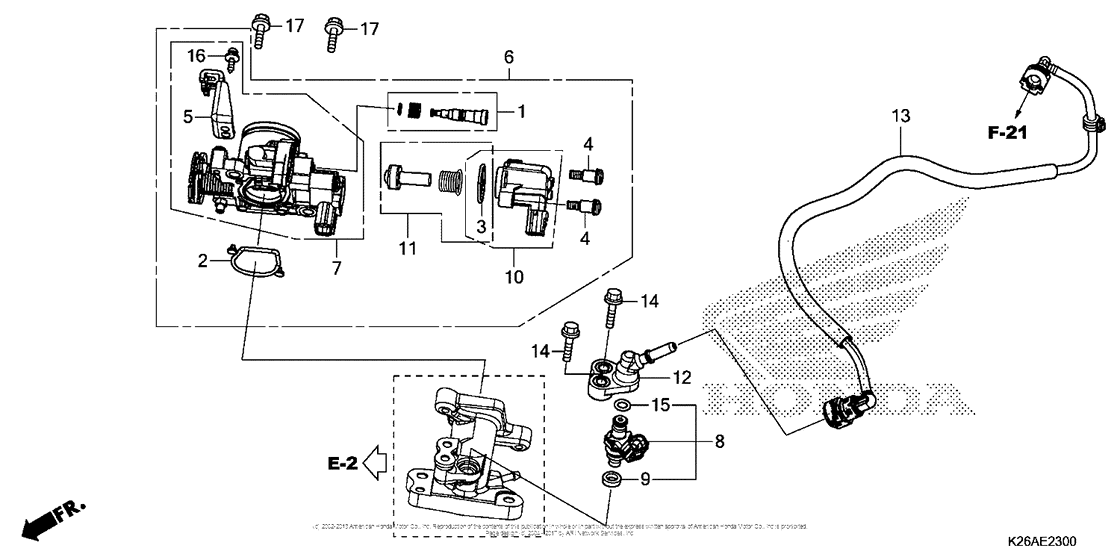

Throttle Body Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16016-K03-H11 New Genuine Part |
16016-K03-H11 |
from US $2.91 |
||
|
2
|
2
16075-KYZ-711 O-ring |
16075-KYZ-711 |
from US $2.44 |
||
|
3
|
3
16077-KVB-S51 O-RING (1.9X20.4) |
16077-KVB-S51 |
from US $1.85 |
||
|
4
|
4
16081-KYJ-901 Screw, torx (5x8.7) |
16081-KYJ-901 |
from US $2 |
||
|
5
|
5
16169-K26-901 Stay, wire |
16169-K26-901 |
from US $11.40 |
||
|
6
|
6
16400-K26-B11 BODY ASSY. (GQY4B A) |
16400-K26-B11 |
from US $132.92 |
||
|
7
|
7
16410-K26-B11 BODY SET |
16410-K26-B11 |
from US $87.41 |
||
|
8
|
8
16450-K03-H11 INJECTOR ASSY., FUEL |
16450-K03-H11 |
from US $49.81 |
||
|
9
|
9
16472-KPC-D50 Ring, seal |
16472-KPC-D50 |
from US $2 |
||
|
10
|
10
16480-KVB-S51 Solenoid |
16480-KVB-S51 |
from US $53.35 |
||
|
11
|
11
16485-GGZ-J01 New Genuine Part |
16485-GGZ-J01 |
from US $6.73 |
||
|
12
|
12
17560-K26-900 Joint, injector |
17560-K26-900 |
from US $12.73 |
||
|
13
|
13
17570-K26-B01 HOSE, FUEL FEED |
17570-K26-B01 |
from US $25.96 |
||
|
14
|
14
90001-K26-900 Bolt, flange (6x22) |
90001-K26-900 |
from US $2 |
||
|
15
|
15
91301-GGL-J01 New Genuine Part |
91301-GGL-J01 |
from US $4.59 |
||
|
16
|
16
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
17
|
17
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
