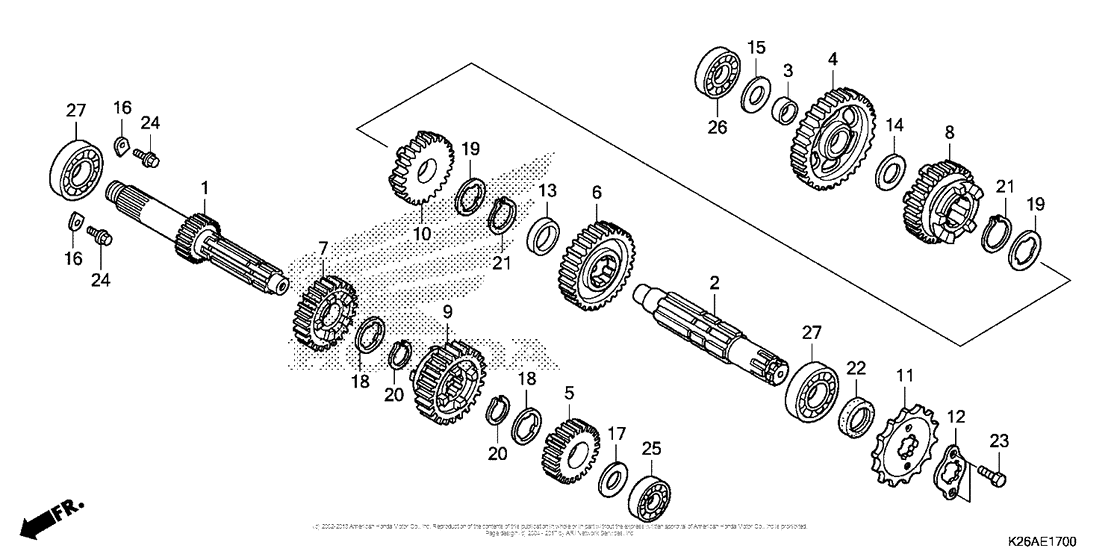

Transmission Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-KPH-900 Shaft,main 14t |
23211-KPH-900 |
from US $28.32 |
||
|
2
|
2
23221-KPH-900 Shaft,counter |
23221-KPH-900 |
from US $26.28 |
||
|
3
|
3
23415-KPH-900 Bush,15mm |
23415-KPH-900 |
from US $6.51 |
||
|
4
|
4
23421-KPH-900 Gear,c-1 35t |
23421-KPH-900 |
from US $20.33 |
||
|
5
|
5
23431-KPH-700 GearMAINSHAFT SECOND (20T) |
23431-KPH-700 |
from US $25.70 |
||
|
6
|
6
23441-KPH-900 Gear,c-2 31t |
23441-KPH-900 |
from US $13.75 |
||
|
7
|
7
23451-KPH-700 GearMAINSHAFT THIRD (20T) |
23451-KPH-700 |
from US $27.22 |
||
|
8
|
8
23461-KPH-900 Gear,c-3 23t |
23461-KPH-900 |
from US $25.35 |
||
|
9
|
9
23471-KPH-700 GearMAINSHAFT FOURTH (26T) |
23471-KPH-700 |
from US $19.91 |
||
|
10
|
10
23481-KPH-700 GearCOUNTERSHAFT FOURTH (24T) |
23481-KPH-700 |
from US $30.92 |
||
|
11
|
11
23801-K26-900 Sprocket (15t) |
23801-K26-900 |
from US $24.11 |
||
|
12
|
12
23802-GN5-910 Plate,fixing |
23802-GN5-910 |
from US $3.18 |
||
|
13
|
13
23911-KPG-T00 Collar (5.1mm) |
23911-KPG-T00 |
from US $1.94 |
||
|
14
|
14
90412-187-000 Washer, thrust, 15mm |
90412-187-000 |
from US $2.74 |
||
|
15
|
15
90412-KPH-900 Washer spl 12x23 |
90412-KPH-900 |
from US $1 |
||
|
16
|
16
90441-KRM-840 Plate |
90441-KRM-840 |
from US $0.87 |
||
|
17
|
17
90452-KGH-900 Washer,spl 12mm |
90452-KGH-900 |
from US $2.52 |
||
|
18
|
18
90461-115-000 Washer (17mm) |
90461-115-000 |
from US $2.74 |
||
|
19
|
19
90461-GB4-770 Washer, spline |
90461-GB4-770 |
from US $2.59 |
||
|
20
|
20
90601-001-000 Circlip, external, 17mm |
90601-001-000 |
from US $2.22 |
||
|
21
|
21
90605-200-000 Set-ring (20mm) |
90605-200-000 |
from US $3.11 |
||
|
22
|
22
91204-KPH-901 Oil seal,17x30x5 |
91204-KPH-901 |
from US $1.56 |
||
|
23
|
23
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
24
|
24
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
25
|
25
96100-600-100-0 Bearing, radial ball, 6001 |
96100-600-100-0 |
from US $5.77 |
||
|
26
|
26
96100-6201000 Bearing, radial ball, 6201 |
96100-6201000 |
from US $4.44 |
||
|
27
|
27
96100-6203000 Bearing, radial ball, 6203 |
96100-6203000 |
from US $6.07 |
