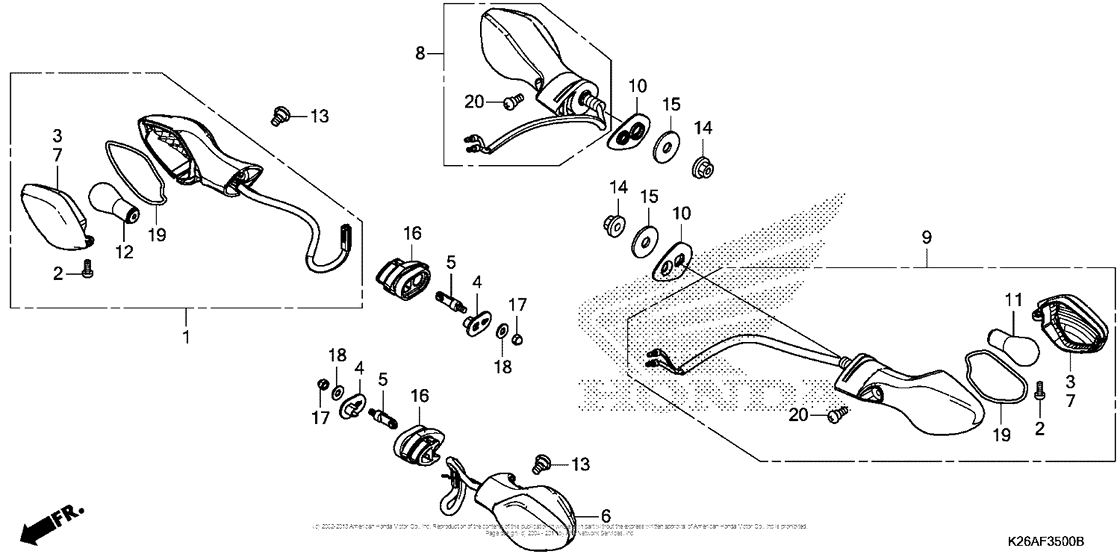

Turn Signal Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-K26-315 TURN SIGNAL ASSY. |
33400-K26-315 |
US $27.34 |
||
|
2
|
2
33402-MGS-D31 Screw (4x10) |
33402-MGS-D31 |
from US $0.96 |
||
|
3
|
3
33404-MGS-J32 LENS, R. TURN SIGNAL |
33404-MGS-J32 |
from US $4.74 |
||
|
4
|
4
33411-MGZ-J00 Plate, turn signal |
33411-MGZ-J00 |
from US $1.94 |
||
|
5
|
5
33412-MGZ-J00 Stay, turn signal |
33412-MGZ-J00 |
from US $5.92 |
||
|
6
|
6
33450-K26-315 TURN SIGNAL ASSY. |
33450-K26-315 |
US $27.34 |
||
|
7
|
7
33454-MGS-J32 LENS, L. TURN SIGNAL |
33454-MGS-J32 |
from US $4.74 |
||
|
8
|
8
33600-K26-315 TURN SIGNAL ASSY. |
33600-K26-315 |
US $23.66 |
||
|
9
|
9
33650-K26-315 TURN SIGNAL ASSY. |
33650-K26-315 |
US $23.58 |
||
|
10
|
10
33941-K26-950 Plate, turn signal |
33941-K26-950 |
from US $6.81 |
||
|
11
|
11
34905-MGS-J31 Bulb (12v 21w) |
34905-MGS-J31 |
from US $4.74 |
||
|
12
|
12
34906-MGZ-J01 Bulb (p21/5w) |
34906-MGZ-J01 |
from US $9.71 |
||
|
13
|
13
90380-MGS-D30 Screw, special (6x8) |
90380-MGS-D30 |
from US $2.59 |
||
|
14
|
14
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
15
|
15
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
16
|
16
33613-MGZ-J00 Rubber |
33613-MGZ-J00 |
from US $3.55 |
||
|
17
|
17
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
18
|
18
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
19
|
19
33405-MKA-D81 SEAL, GASKET |
33405-MKA-D81 |
from US $0.80 |
||
|
20
|
20
90380-KZZ-900 Screw (6x11) |
90380-KZZ-900 |
from US $1.70 |
