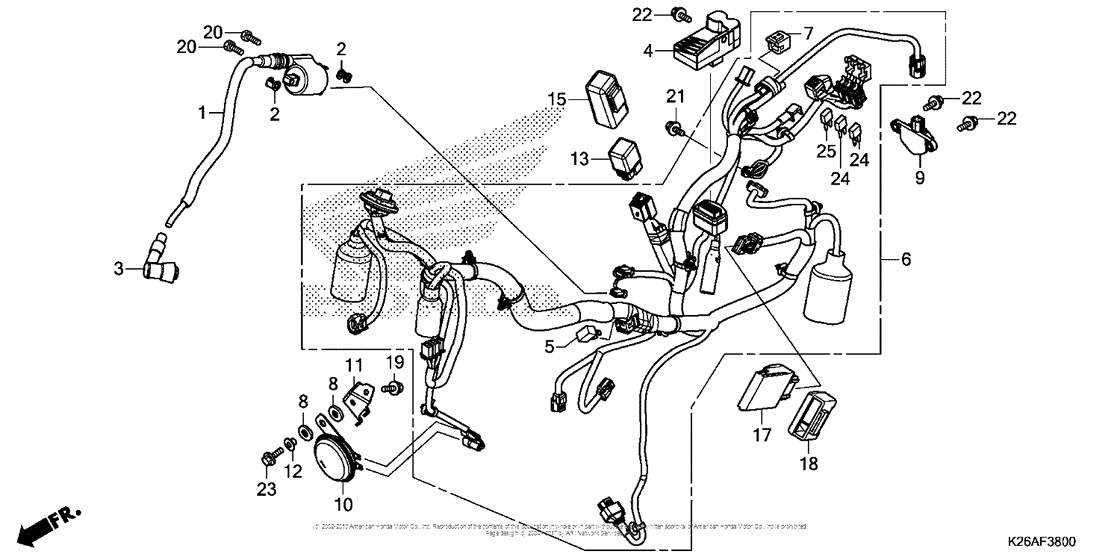

Wire Harness Diagram Honda MSX125 Grom
- Year
- 2017
- Model code
- GROM125 AC
- Sales region
- USA
- Frame
- MLHJC611 - H5200001
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-K26-B01 COIL, IGNITION |
30510-K26-B01 |
from US $26.66 |
||
|
2
|
2
30520-GFM-900 Spacer |
30520-GFM-900 |
from US $2.89 |
||
|
3
|
3
30700-KYZ-901 Cap assy. |
30700-KYZ-901 |
from US $15.91 |
||
|
4
|
4
31600-K26-B11 RECTIFIER, REGULATOR |
31600-K26-B11 |
from US $105.42 |
||
|
5
|
5
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
6
|
6
32100-K26-B10 WIRE HARNESS |
32100-K26-B10 |
US $373.22 |
||
|
7
|
7
32606-GEV-761 Cap, dummy (4p) |
32606-GEV-761 |
from US $4.29 |
||
|
8
|
8
33714-KL3-620 Rub,tail/lt brkt. |
33714-KL3-620 |
from US $2 |
||
|
9
|
9
35160-MGS-D31 Sensor assy. (m6) |
35160-MGS-D31 |
from US $110.16 |
||
|
10
|
10
38110-KWW-A41 HORN |
38110-KWW-A41 |
US $15.47 |
||
|
11
|
11
38111-K26-900 Stay comp,horn |
38111-K26-900 |
from US $5.18 |
||
|
12
|
12
38117-KYZ-T00 Collar, horn setting |
38117-KYZ-T00 |
from US $1.05 |
||
|
13
|
13
38501-GFM-901 Relay c0mp start |
38501-GFM-901 |
from US $25.98 |
||
|
15
|
15
38506-KYK-910 Suspension |
38506-KYK-910 |
from US $2.52 |
||
|
17
|
17
38770-K26-B13 PGM-FI UNIT |
38770-K26-B13 |
US $144.14 |
||
|
18
|
18
38771-KZL-930 Suspension |
38771-KZL-930 |
from US $2.84 |
||
|
19
|
19
90105-K26-B00 BOLT, FLANGE (6X10) |
90105-K26-B00 |
from US $1.45 |
||
|
20
|
20
92101-06020-4J Bolt, hex., 6x20 |
92101-06020-4J |
from US $0.89 |
||
|
21
|
21
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
22
|
22
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
23
|
23
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
24
|
24
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
25
|
25
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
