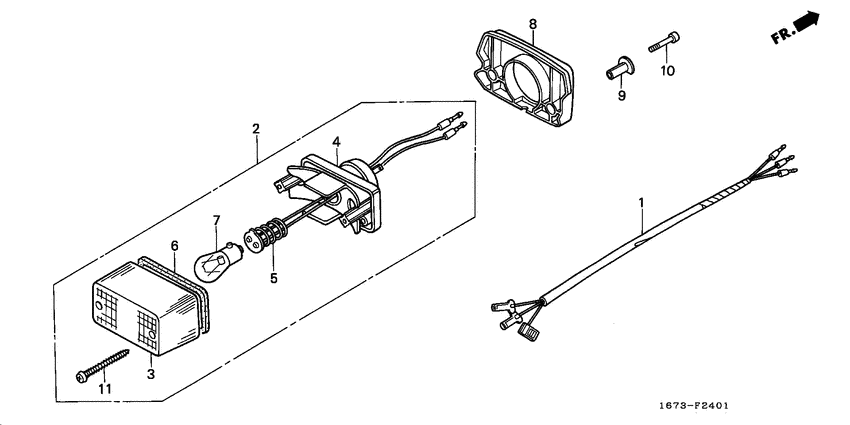

Taillight (H) Diagram Honda MT50
- Year
- 1990
- Model code
- MT50SL
- Sales region
- Netherlands
- Frame
- AD015501926 - AD015509222
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-167-860
Sub harness a
|
32101-167-860 |
— | ||
|
2
|
2
33701-KJ2-623
Unit,tail light
|
33701-KJ2-623 |
— | ||
|
3
|
3
33702-KF0-644 Lens, taillight |
33702-KF0-644 |
from US $18.31 |
||
|
4
|
4
33703-KF0-642
Socket comp.,tail
|
33703-KF0-642 |
— | ||
|
5
|
5
33705-147-671
Cord,tall light
|
33705-147-671 |
— | ||
| replacement | |||||
|
5
|
5
33705-166-770 Cord,taillight |
33705-166-770 |
US $10.21 |
||
|
6
|
6
33709-KF0-641 Gasket, taillight |
33709-KF0-641 |
from US $2.79 |
||
|
7
|
7
34905-149-611 Bulb,tail stop lt |
34905-149-611 |
US $5.10 |
||
|
8
|
8
84705-167-860
Bracket
|
84705-167-860 |
— | ||
|
9
|
9
84706-167-860
Collar
|
84706-167-860 |
— | ||
|
10
|
10
90115-167-860 Bolt, socket (5x32) |
90115-167-860 |
from US $1.62 |
||
|
11
|
11
9390134780 Screw, tap (4x30) |
9390134780 |
from US $0.37 |
||
