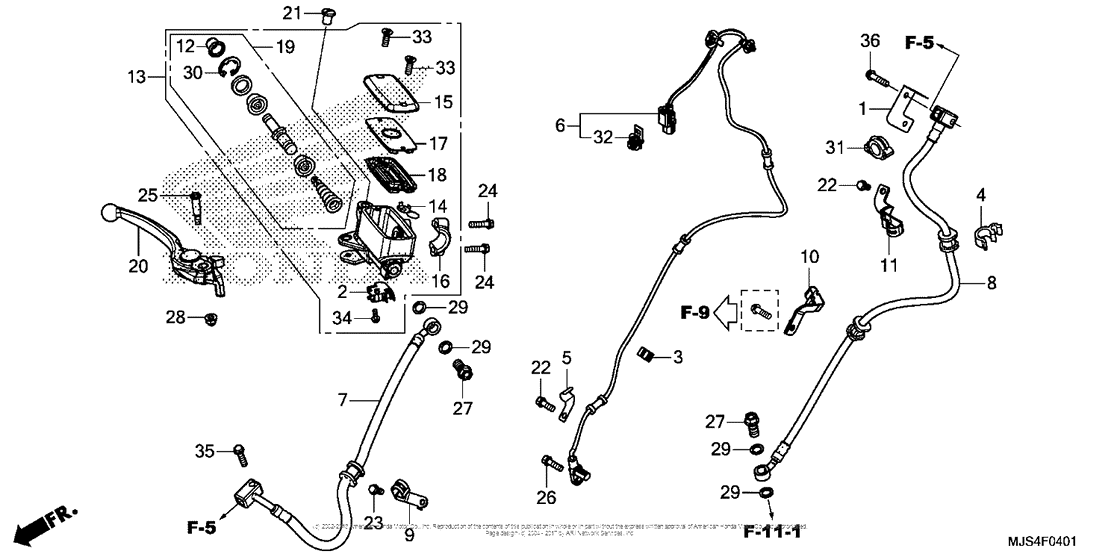

Front Brake Master Cylinder (2) Diagram Honda NC700
- Year
- 2018
- Model code
- NC700JD AC
- Sales region
- USA
- Frame
- JH2RC811 - JK300001
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32157-MJL-D70 New Genuine Part |
32157-MJL-D70 |
from US $3.55 |
||
|
2
|
2
35340-MGS-D31 Switch, fr. stop |
35340-MGS-D31 |
from US $15.78 |
||
|
3
|
3
38516-MGE-003 Clamp (d8,5) |
38516-MGE-003 |
from US $2.96 |
||
|
4
|
4
38517-MGE-003 Clamp, abs wire (12) |
38517-MGE-003 |
from US $2.59 |
||
|
5
|
5
38517-MKA-D80 CLAMP, SENSOR WIRE |
38517-MKA-D80 |
from US $1.53 |
||
|
6
|
6
38520-MJS-J31 SENSOR, FR. |
38520-MJS-J31 |
from US $163.34 |
||
|
7
|
7
45125-MJS-J71 New Genuine Part |
45125-MJS-J71 |
from US $44.20 |
||
|
8
|
8
45128-MJS-J31 HOSE D, FR. BRAKE |
45128-MJS-J31 |
from US $65.33 |
||
|
9
|
9
45155-MJS-J70 New Genuine Part |
45155-MJS-J70 |
from US $4.88 |
||
|
10
|
10
45156-MJF-C10 Clamp b, fr. brake |
45156-MJF-C10 |
from US $8.44 |
||
|
11
|
11
45156-MJS-J70 New Genuine Part |
45156-MJS-J70 |
from US $8.14 |
||
|
12
|
12
45504-410-003 Boot |
45504-410-003 |
from US $4.46 |
||
|
13
|
13
45510-MGS-305
M/cyl sub-assy, fr.
|
45510-MGS-305 |
— | ||
| replacement | |||||
|
13
|
13
45510-MGS-D31 M/cyl sub-assy, fr. |
45510-MGS-D31 |
from US $194.48 |
||
|
14
|
14
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.63 |
||
|
15
|
15
45513-MM5-016 Cap, master cylinder |
45513-MM5-016 |
from US $22.03 |
||
|
16
|
16
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
17
|
17
45518-MM5-006 Plate, diaphragm |
45518-MM5-006 |
from US $5.72 |
||
|
18
|
18
45520-MM5-006 Diaphragm |
45520-MM5-006 |
from US $7.99 |
||
|
19
|
19
45530-KVY-911 Cylinder set, Master |
45530-KVY-911 |
from US $31.01 |
||
|
20
|
20
53170-MEJ-305
Lever assy., r. handle (coo)
|
53170-MEJ-305 |
— | ||
| replacement | |||||
|
20
|
20
53170-MEJ-016 Lever, r. handle |
53170-MEJ-016 |
from US $35.37 |
||
|
21
|
21
53174-116-670 Plug |
53174-116-670 |
from US $3.11 |
||
|
22
|
22
90013-GHB-610 BOLT, FLANGE (6X12) |
90013-GHB-610 |
from US $1.92 |
||
|
23
|
23
90013-GHB-620 BOLT, FLANGE (6X14) |
90013-GHB-620 |
from US $1.92 |
||
|
24
|
24
90013-GHB-660 BOLT, FLANGE (6X22) |
90013-GHB-660 |
from US $1.92 |
||
|
25
|
25
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $3.92 |
||
|
26
|
26
90116-MKA-D80 BOLT, FLANGE (6X16) |
90116-MKA-D80 |
from US $1.85 |
||
|
27
|
27
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
28
|
28
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.18 |
||
|
29
|
29
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
30
|
30
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
31
|
31
90690-MGS-D81 Clip, cable (12mm) |
90690-MGS-D81 |
from US $1.85 |
||
|
32
|
32
91535-TA0-003 ClipCOUPLER (DARK BROWN) |
91535-TA0-003 |
from US $3.48 |
||
|
33
|
33
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
34
|
34
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
35
|
35
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
36
|
36
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
